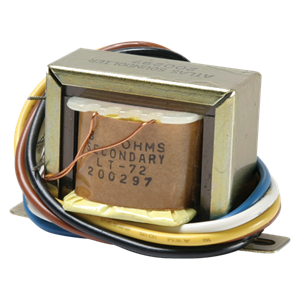

General Purpose Transformer 70.7V

LT70

    The LT70 General purpose transformer provides economical matching of loudspeakers for most distributed sound applications.

    The insertion loss does not exceed 1.5dB and frequency response is +1.5dB from 100Hz - 10kHz.


    Primary taps are .5, 1, 2 and 5 watts. Secondary impedance is 8 ohms. Model LT-70 is designed for use with 70.7-volt lines.
    Features
    70.7V Line Matching Transformer
    Compact Footprint
    Frequency Response 100Hz - 10kHz
    Tech Specs
    Frequency Response 100Hz - 10KHz
    Power Taps .5, 1, 2 & 5
    Power Rating 5W
    Primary Voltage 70.7
    Height 1 3/8" (3.4925 cm)
    Width 1 3/4" (4.36626 cm)
    Depth 3/4" (1.82626 cm)
    Shipping Weight 0.50 lbs (0.23 kgs)
    Support Files
    Data Sheet ATS002294 Line Matching Tranformers Datasheet RevE (3 pages) View | Download
