600-Ohm Impedance Matching Isolation Transformer

Availability: In stock
Your Price:
  • TAA

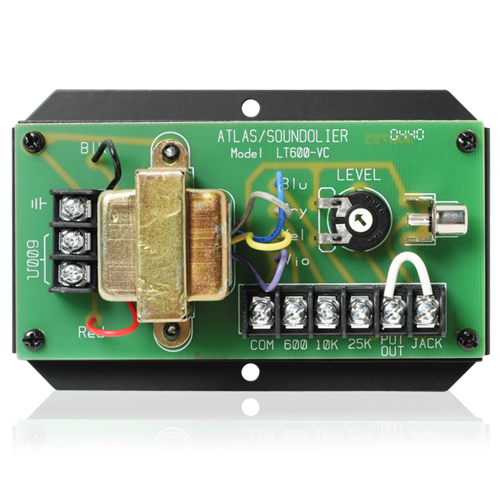

    The LT600-VC is a versatile unit for matching telephone-type, 600 ohm line circuits with HI-Z circuits. It can also be used as a 600 ohm to 600 ohm isolation transformer. Recommended for coupling of tele-phone- type lines into amplified sound systems, background music and paging systems, recording equipment, or studio electronics. Built-in potentiometer provides optional adjustability for the 25K output level. The 600 ohm input may be matched to 600, 10K and 25K-ohm circuits. All components are mounted on a printed circuit board. Steel chassis includes mounting ears and "insta-mount" tape. Transformer is shielded to minimize induced hum. Unit includes a phono jack on the output side for convenient connection to amplifier or other equipment circuitry. Jack can be connected to various transformer taps via barrier strip jumper. (Factory-installed jumper connects jack to potentiometer output).

    • Match TelephoneType 600 Ohm Line Circuits with HI-Z Circuits
    • Phono Jack on the Output Side for Convenient Connection to Amplifier or Other Equipment Circuitry
    • The 600 Ohm Input May Be Matched to 600, 10K and 25K-Ohm Circuits

    Height 1 3/4" (4.45 cm)
    Width 3 1/8" (7.94 cm)
    Depth 4 7/8" (12.38 cm)
    Shipping Weight 1.00 lb (0.45 kgs)
    Warranty Period 60 months from date of purchase

    Line Matching Tranformers Datasheet (3 pages) Line Matching Tranformers Datasheet (3 pages)
    Telephone Intercom Accessories Datasheet (3 pages) Telephone Intercom Accessories Datasheet (3 pages)
