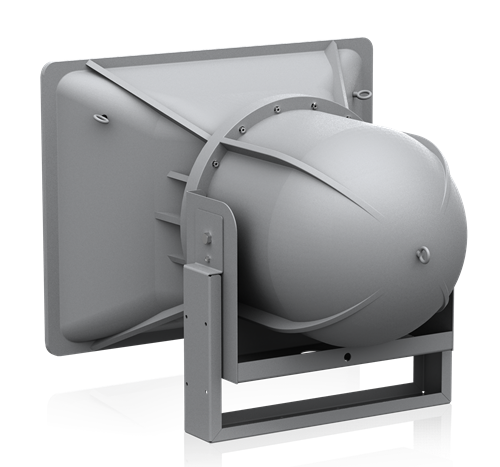

15" 2-way Stadium Horn Loudspeaker System 90° x 40°

AH94-15-BSG
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $1,889.99
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
  • 90°H x 40°V Coverage
  • Non-Powered
  • IP54

    AtlasIED model AH94-15-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

    Weather resistant construction features of the AH94-15-BSG include a multiple screen configuration to prevent moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 15" cast frame woofer. A "weep" hole is included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.

    FEATURES
    250 Watts power handling
    8-ohm nominal system impedance (70.7 volt operation via optional Atlas Sound model AF140 transformer)
    Constant Directivity Design Offers Controlled Coverage of 90° Horizontal by 40° Vertical (2kHz Octave Band)
    Driver Compliment Includes 15" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 90°H x 40°V HF Horn
    Easy, weather resistant connection via a parallel 4-pole terminal block connector
    Efficiency Rating of 104dB (1W/1m)
    Full Range Frequency Response of 75Hz - 14.5kHz
    Heavy Duty Stainless Steel Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
    Maximum output of 128dB (Rated Power @ 1M)
    SPECIFICATIONS
    Power Rating 250 Watts (53V) RMS
    Sensitivity 104dB SPL
    Frequency Response 75Hz - 14.5kHz
    Driver Type LF: (1) 15" Cast Frame Woofer. HF 1" Compression Driver with Titanium Diaphragm
    Dispersion 90° x 40°
    Height 20 1/2" (52.07 cm)
    Width 30" (76.2 cm)
    Depth 31" (78.74 cm)
    Weight 100 lbs (45.4 kgs)
    SUPPORT FILES
    AH_Brochure (4 pages)
    CAD Drawing
    AH94-15-BSG CAD Drawing
    Data Sheet
    ATS004763 AH94-15-BSG Data Sheet RevA (4 pages)
    Installation Sheet
    AH-15_SINGLE_POLEMOUNT-REV01-073008 (2 pages)
    Installation Sheet
    AH-15_DOUBLE_POLE_MOUNT-REV03-073008 (1 page)
    Installation Sheet
    AH Series PoleStar Install Parts Guide (5 pages)
    Installation Sheet
    ATS004338_AH_Series_LoudSpeakers_Install_Sheet (11 pages)
    Revit Drawing
    AH94-15-BSG Revit Drawing
