PoE+ Indoor Wall Mount IP Horn Speaker with LCD Display

IP-SDH
Availability: In stock
Your Price:
$1,269.99
  • BAA
  • CETL
  • CE
  • LCD Display Included
  • PoE+
  • Enclosure Sold Separately
  • FCC
  • G.711 Capable
  • G.722 Capable
    DESCRIPTION

    The AtlasIED IPX Series IP-SDH indoor wall mount IP speaker with Horn and display leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

    AtlasIED IP-SDH registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

    IP-SDH IP speakers with display provide equality “effective communication”.

    “Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others.”

    What does it mean for communication to be “effective”? Simply put, “effective communication” means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.

    Where 3rd party notification applications are not required, the IP-SDH speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    Features

    IP-SDH indoor speakers are fitted with a highly efficient 15-Watt compression driver/speaker with a proven record of outstanding service reliability. A double re-entrant design provides superior sound level output and clear audibility of voice and tone alert notification and paging.

    The Grills for the IP-SDH IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

    While in Standby, the IP-SDH displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the I8SCH+ display changes from time to visual notifications by Scrolling text content over the high-resolution LCD digital readout.

    All AtlasIED IP speakers consist of a factory assembled horn speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.

    The IP-SDH features auto-registration. This is an easy and timesaving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed

    Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.

    Mounting hardware: (sold separately)

    • Wall – Flush (In-Wall): IP-FEST-SD

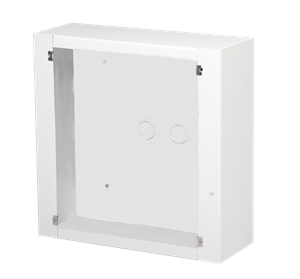

    • Wall – Surface (On-Wall): IP-SEST-SD

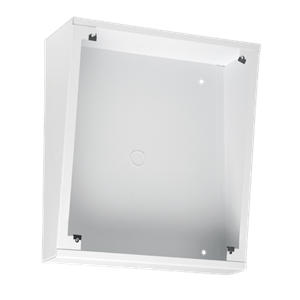

    • Wall – Slanted (On-Wall): IP-SEA-SD

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!


    Features
    • Natively Auto Registers as an Endpoint in GlobalControlKom®, InformaCast®, or Revolution Notification Applications
    • Works with New or Existing Multicast Enabled Local Area Networks
    • Compatible with SIP (Session Initiation Protocol) VoIP systems
    • IEEE 802.3af or 802.3at Compliant POE/POE+
    • Primary and Aux Speaker Outputs
    • Emergency Alert Trigger
    • Relay Output
    • Aux Audio Input
    • External Power Supply Option
    • Dynamic or Static IP Address
    • Phone/Night Loud Ringer
    • Static Multicast Audio Reception
    • Custom Event Notification Scripting
    • Auto Provisioning
    • Secure Web Configuration
    • Highly Efficient APF Horn Loudspeaker Provides Greater Output and Coverage
    • Includes LED Display with Capability to Display Time or Scrolling Text for Announcements or Emergency Messages

    SPECIFICATIONS
    Speaker Type Horn
    Frequency Response 600Hz - 14kHz
    Dispersion 95˚ (-6dB, 2000Hz Octave Band)
    MAX SPL 120dB @ 15-Watts (Peak)
    Power Rating 12-Watts Max (802.3AF) / 25-Watts Max (802.3AT)
    THD <0.2%
    Grille Powder Coated Steel
    Connector Type RJ-45
    Height 14.37" (365mm)
    Width 12.87" (327mm)
    Depth 4.18" (106mm)
    Weight 5.21 lbs. (2.36kg)
    Shipping Weight 6.66 lbs. (3.02kg)
    Safety Listed 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC
    Warranty Period 12 months from date of purchase
