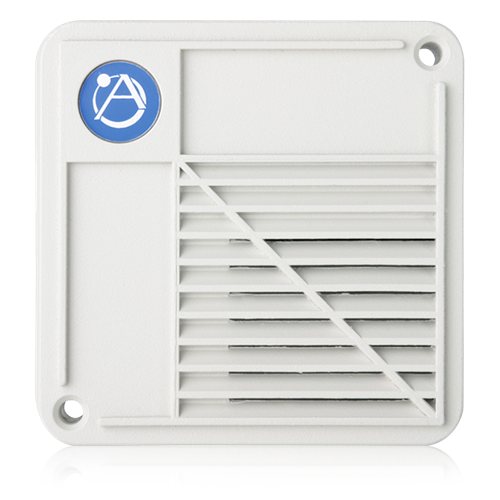

Voice/Tone Surface Mount Compression Driver Speaker with 15-Watt 70V Transformer - Gray

VT-157UCN
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $138.99
  • UL Listed
    DESCRIPTION

    Through proven performance, patented VT/VTF Series have earned worldwide acclaim for service reliability. These cost-effective units offer compact size, functional flexibility, optimum intelligibility, effective sound distribution, and high-level output. All models contain a highefficiency compression driver with maximum acoustic conversion efficiency. (A quality which reduces number of units needed to attain specified sound pressure levels and provides substantial savings in amplification-power requirements and labor costs.) Die-cast, water-sealed construction withstands vandalism, vermin, moisture, corrosion, and vibration during indoor or outdoor use. Selection includes a basic 8-ohm version and 70.7 or 25-volt transformer models with DC blocking capacitor (C) where noted. All models terminate via barrier strips. VT Series models are surface-mount units; VTF Series are flush-mount units for recessed installation. VT Series mounts standard 4" E.O. Boxes; VTF Series mount 4" or 4 11/16" SQ backboxes and require model AR or MR adapter rings respectively (order separately) Optional mounting accessories are offered including: indoor and outdoor enclosures, a bi-directional housing, adapter plates and rings. Suffix model with color: Red (R) or Neutral Gray (N). Ex: VT-157UCS.


    FEATURES
    • All Models Produce High Level Output, Optimum Intelligibility, and Effective Dispersion
    • Choose from Surface or Recessed Models in Red or Neutral Gray Finish
    • Durable, Die-Cast, Water-Sealed Housings Withstand Vandalism, Vermin, Moisture, Corrosion, and Vibration
    • Easy and Low Cost Installation Via Standard E.O. Boxes
    • Ideal for Reliable Voice/Tone Signaling in Public Area Emergency Communications and Heavy-Duty Industrial Applications
    • Model Produces High Level Output, Optimum Intelligibility, and Effective Dispersion
    • UL Certified, Safety Listed to UL1480
    • Patented Emergency Loudspeakers Available in 8-Ohm, 70.7V, and 25V Versions
    • Surface Models in Neutral Gray Finish
    • Units Meet or Exceed UL Standard 1480 for Fire Protective Signaling Systems when Used with Compatible Control Equipment
    • Units Meets UL Standard 1480 for Fire Protective Signaling Systems when Used with Compatible Control Equipment

    SPECIFICATIONS
    Frequency Response 600Hz - 55kHz
    Sensitivity 96.9dB (1W/1m)
    Power Taps 15, 8, 4, 2
    Dispersion > 190° (- 6dB pt., 1 and 2 kHz octave bands)
    Transformer 70.7 V
    Height 4 1/4" (10.795 cm)
    Depth 3 1/8" (7.9375 cm)
    Shipping Weight 3.50 lbs (1.59 kgs)
    Safety Listed 1480

    SUPPORT FILES
    SL6.1439
    EASE File
    Installation Sheet
    ATS004388 VT-VTF Series Install Sheet
