High-Quality Transformer 16W (70.7V)

Name: High-Quality Transformer 16W (70.7V)
Brand: AtlasIED
SKU: HT167
Rating: 5 (5 reviews)

HT167

Availability: In stock

Your Price:

$81.99

DESCRIPTION

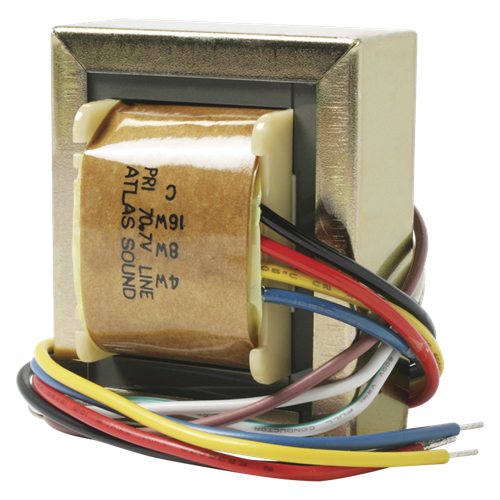

Model HT167 high quality line matching transformer features 0.6dB insertion loss to assure efficient speaker matching in distributed 70.7-volt systems.

Unit is constructed of audio grade laminations and has primary taps at 4, 8 and 16 watts. The secondary impedance is 4 and 8 ohms.

Frequency response is +1dB from 40Hz - 15kHz.

Features

Constructed with Audio Grade Laminations
Frequency Response is 40Hz - 15KHz
High Quality Matching Transformer with Only 0.6dB Insertion Loss
Primary Taps of 4, 8, & 16 Watts
Secondary Outputs Offer Both 4 & 8 ohm Impedance

SPECIFICATIONS

Frequency Response	40Hz - 15KHz
Power Taps	4, 8 & 16 Watts
Power Rating	16W
Primary Voltage	70.7
Height	3 1/8" (7.9 cm)
Width	2 9/16" (6.5 cm)
Depth	1 3/32" (2.8 cm)
Shipping Weight	2.50 lbs (1.13 kgs)
Warranty Period	60 months from date of purchase

SUPPORT FILES

Line Matching Tranformers Datasheet (3 pages)

View | Download
