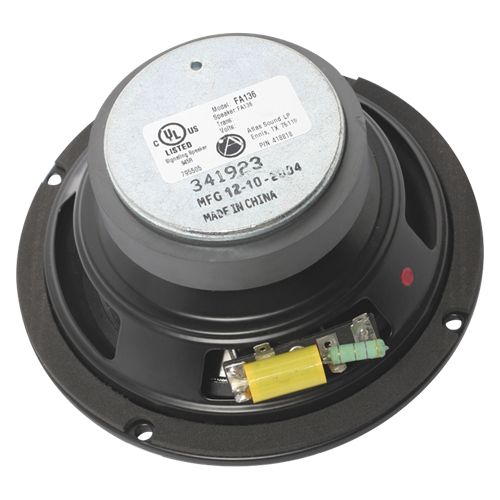

6" Coaxial 50-Watt 8 Ohm In-Ceiling Loudspeaker

FA136
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CUL
  • 4OHM8OHMCAPABLE

    Model FA136 (U.S. Patent #5206464) is a high-fidelity, coaxial, 6" loudspeaker that delivers 50-watts with full frequency response and wide dispersion. UL listed assemblies are manufactured with high quality materials including a Kevlar®, fiber-reinforced, polypropylene woofer and a Norsorex synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance. Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability.

    Model FA136 has been engineered as a system with a high performance matched enclosure, choice of transformers and attractive grilles. Strategy Series high performance enclosure Model FA97-6 is a deep backbox with a volume of (.17 ft3) complete with acoustic batting. The enclosure front-loads the loudspeaker, is offered with and without knockouts (NK) and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps, or to tighten conventional screws. For limited depth installations, mounting ring Model FAPR-6 and low profile enclosure model FA95-6 are offered. Grilles are equipped with three serrated studs for hardware-free, push-on installation.

    Features
    Achieves Fidelity Similar to an 8" (203mm) System with Wider Dispersion
    Front Loads into Specially Designed, Acoustically Matched Enclosure
    Offers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free Grilles
    Patented, Easy-to-Install Loudspeaker Mounting System
    Uses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs
    UL Certified, Safety Listed to UL1480
    Tech Specs
    Speaker Type Coaxial
    Sensitivity 88dB Average, 91dB Peak
    Power Taps 8 ohms
    Frequency Response 80Hz- 20kHz
    Dispersion 130°
    Diameter 6 9/16" (16.67002 cm)
    Depth 3 1/4" (8.255 cm)
    Shipping Weight 3.33 lbs (1.51 kgs)
    Safety Listed 1480
    Support Files
    IN371041 (1 page) View | Download
    Installation Sheet FA Series Install RevD (1 page) View | Download

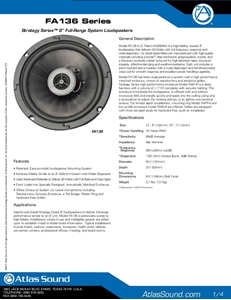

    Data Sheet ATS004119 FA136 Series Datasheet RevA (4 pages) View | Download
    CAD Drawing FA136_A Download
