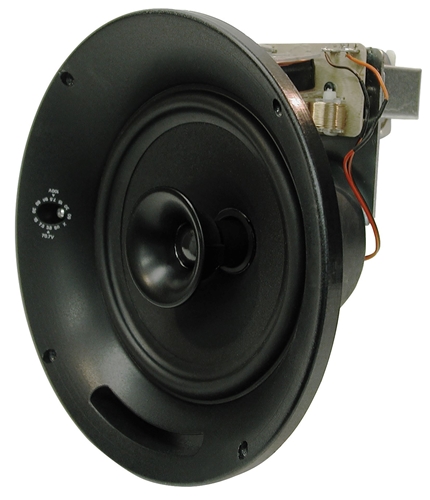

6" Coaxial Speaker w 70.7V/100V-60W Transformer

FA6260T-8MB

    Model FA6260T-8MB is the entire 6" loudspeaker/ transformer/ selector switch/ front plate assembly found in the FAP6260T assembly. The footprint of the FA6260T-8MB is identical to a standard FA series 8" loudspeaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosures in the exact same manner as a regular 8" FA loudspeaker (FA138Txx).

    FEATURES
    6" Speaker Installs into 8" Strategy Enclosure
    Designed for Division of Labor Installations When Enclosures Need to be Installed Before Speakers
    Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output
    Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    Safety Listed to UL1480
    SPECIFICATIONS
    Speaker Type Coaxial
    Frequency Response 63Hz - 20kHz
    Power Taps 1.9, 3.8, 7.5, 15, 30, & 60-Watts + 8 Ohm direct
    Dispersion 60°
    Sensitivity 92dB Average
    Depth 7.862" (19.97cm)
    Diameter 10.972" (279mm)
    Safety Listed 1480
