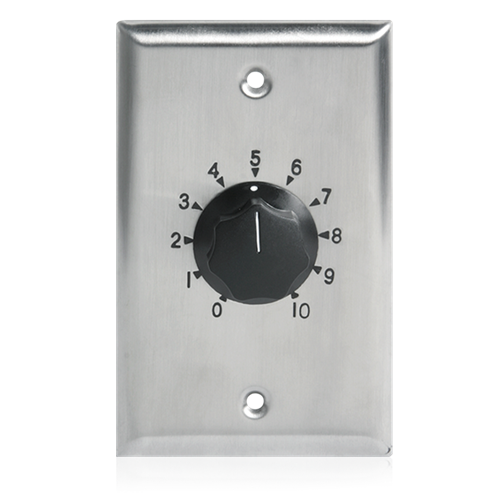

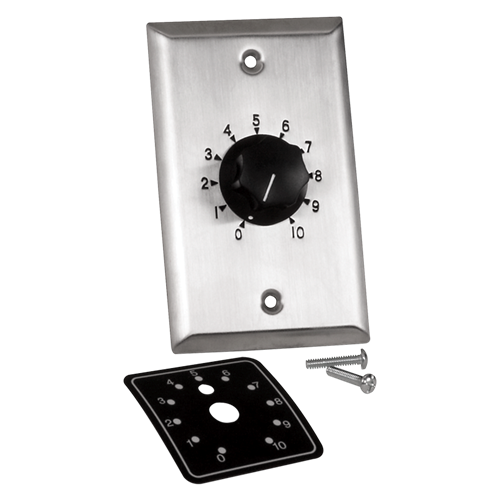

Precision, Plate Mounted 100W Attenuator, 1.5dB Steps

    Specially designed for attenuation in masking and sound reinforcement systems where fine tuning of level control is required. Employs a ten-position, non-shorting rotary switch without stop. Attenuation rate is 1.5dB per step. (All other specifications are the same as the AT Series including the UL listing.)
    1.5 dB Steps for Sound Masking and Other Precision Applications
    100 Watt Power Handling

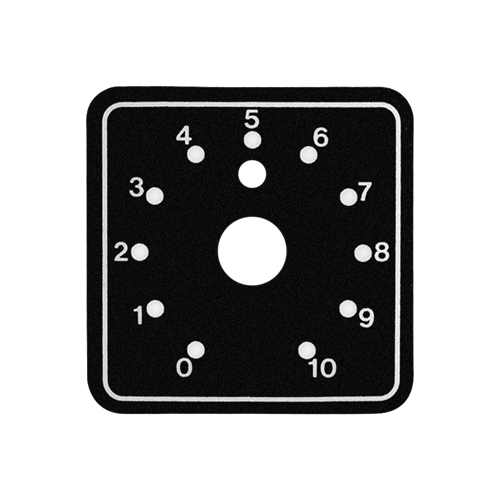

    Rack or Plate Mounting
    Plate Size 1 gang
    Plate Type Stainless Steel
    Power Rating 100W
    Total Attenuation 15dB
    Height 4 1/2" (11.43 cm)
    Width 2 3/4" (6.985 cm)
    Depth 2 5/8" (6.6675 cm)
    Shipping Weight 1.00 lb (0.45 kgs)
    Safety Listed 813, 2043
    Data Sheet
    Data Sheet (1 page)
