2-Channel x 100-Watt 4Ω Networkable Pole Mount Power Amplifier

Availability: In stock
Your Price:
  • Mount Sold Separately
  • CE
  • FCC
  • Onboard DSP
  • TUV

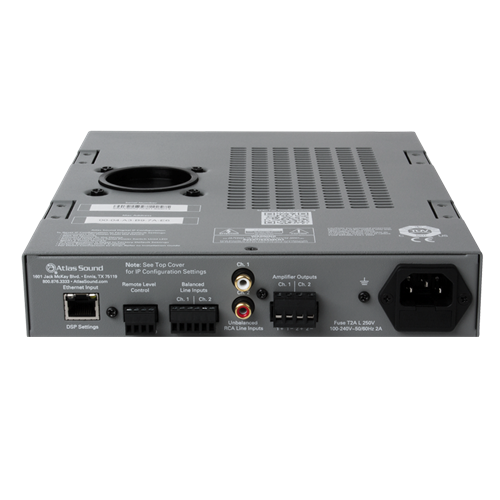

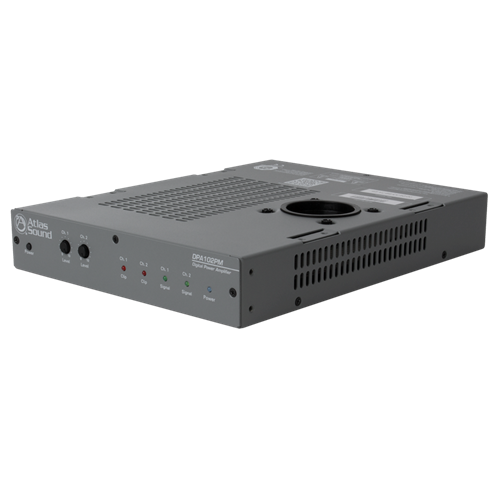

    The AtlasIED DPA Series amplifiers feature a combination of flexibility, performance and control to provide high value features for applications that require more than just great sound. Atlas DPA amplifiers can be used right out of the box as traditional power amplifiers requiring no programming, special set-up, or network connectivity.  However; if you need more from the amplifier, the web enabled DPA Series has an assortment of DSP tools including level controls, EQ’s, limiters, high & low pass filters, delays and summing to provide great flexibility for a range of applications.

    Once configured, the amplifier can be password protected to prevent unauthorized changes. The embedded control software allows the integrator to lock out the front panel controls as well as maintain proper settings. To make the DPA-102PM a “game changer” we’ve combined the advantages of on board DSP with an integral web server to give you the ability to remotely control DSP functions and levels as well as monitor output levels and the status of any DPA amplifier on the network. To make it easier to identify and set-up DPA amplifiers on the network, AtlasIED provides DPA Discovery a tool available for PC’s and Apple mobile devices.

    • 2 x 100 Watt Class-D Amplifier Technology
    • DSP Signal Processing, Fully Configurable
    • Ethernet Network Connectivity
    • Remote Monitoring of Status & Levels
    • Network Auto-Discovery Software
    • Pole Mounted Projector Featuring Through Chassis or Side Pole Mount
    • Audio Sense Turn-On/Off
    • Balanced and Unbalanced Inputs
    • Assignable Level Controls (Security Protected)

    Power Output 2 x 100 Watts @ 4Ω
    Frequency Response 20Hz - 20kHz
    THD 0.2% @ Rated Output
    Signal to Noise Ratio 100dB
    Height 1.75" (45mm)
    Width 8.5" (215mm)
    Depth 13.5" (343mm)
    Voltage Compatibility Universal
    Warranty Period 36 months from date of purchase

    DPA102PM Firmware March 2019 DPA102PM Firmware March 2019
    DPA Series Site Manager v2.55 DPA Series Site Manager v2.55

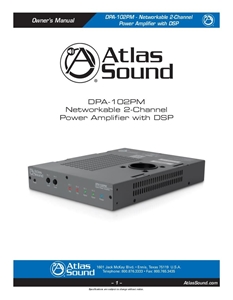

    DPA102PM English Rev (20 pages) DPA102PM English Rev (20 pages)

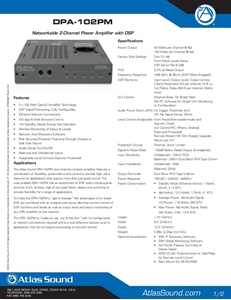

    DPA-102PM Datasheet (2 pages) DPA-102PM Datasheet (2 pages)
    Site Manager Reference Guide (12 pages) Site Manager Reference Guide (12 pages)
    DPA Amplifier Quick Start Guide (2 pages) DPA Amplifier Quick Start Guide (2 pages)
