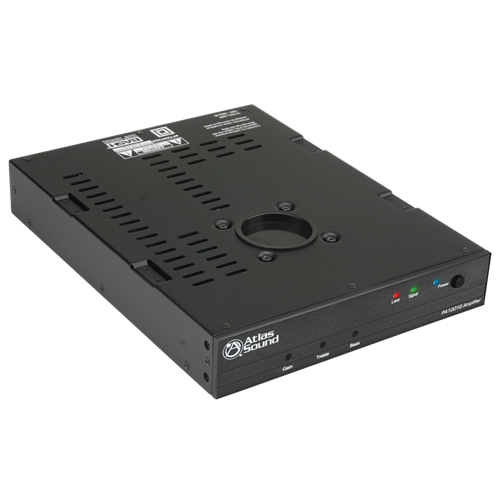

Single Channel, 100-Watt Pole Mount Amplifier

PA1001G
Availability: In stock
Your price (USD): $441.99
  • Mount Sold Separately
  • UL Listed
  • CUL
  • CE
  • 70V / 100V Operation

    This amplifier features an ultra compact design requiring only 1RU in height and 1⁄2 rack wide in space.

    The 100W into a 70V or 100V distributed system gives the power to meet most amplifier demands. The PA1001G power supply supports 120-240VAC power for global use and operation.

    The patent pending through hole chassis design makes it convenient to use with ceiling mounted video projectors. One or two units can be rack mounted also allowing it to be used in more traditional applications.

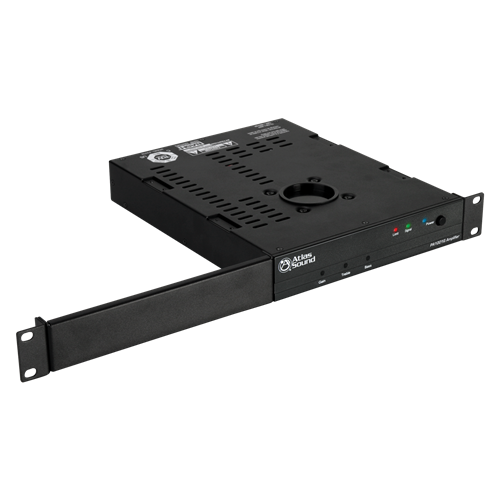

    Rack mount kit sold separately.

    Remote turn on is easily accomplished by either audio or AC trigger sensors. If focused power is required, an optional Hi-pass filter is incorporated. Master remote level control is easily done via an external 10k potentiometer and a line out makes it easy to daisy chain amplifiers.

    The PA1001G has incorporated a mixer function that allows you connect two different sources to the amp. The summed RCA unbalanced inputs and the balanced input are electrically summed together and are electrically isolated from each other.

    The PA1001G can be used in many ways ranging from boardroom, restaurant, commercial paging and back ground music applications.

    FEATURES
    100W x 1, 70V/100V
    Ultra Efficient Amplification Technology
    Patent Pending, Through Chassis Mounting System for Use with Pole Mounted Projector Systems
    Multi Voltage Power Supply Allows for Worldwide Operation
    Optional Rack Mount Kit - PA702-RMK
    SPECIFICATIONS
    Output Power 100W @ 70V into 50Ω, 100W @ 100V into 100Ω
    Frequency Response 30Hz-20kHz No High Pass Filter +/-3dB 100Hz-20kHz High Pass Engaged +/-3dB
    Power Consumption 10 Watts in Sleep Mode<br />16 Watts in Active Idle Mode<br />165 Watts at Full Load 70V
    Height 1.75" (44.5mm)
    Width 8.5" (215.9mm)
    Depth 13.5" (342.9mm)
    Weight 4.9 lbs. (2.4 kg)
    Optional Rack Mount Kit PA702-RMK
    Voltage Compatibility Universal
    SUPPORT FILES
    Owners Manual

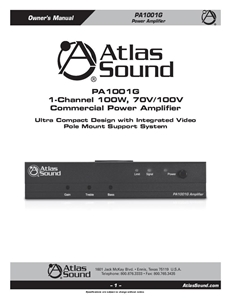

    PA1001G Owners Manual (16 pages)
    Data Sheet

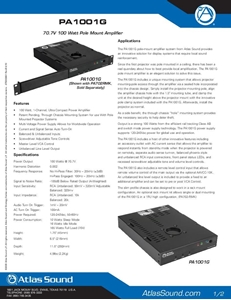

    PA1001G Data Sheet (2 pages)
    Owners Manual
    PA1001G Owners Manual (Spanish) (16 pages)
