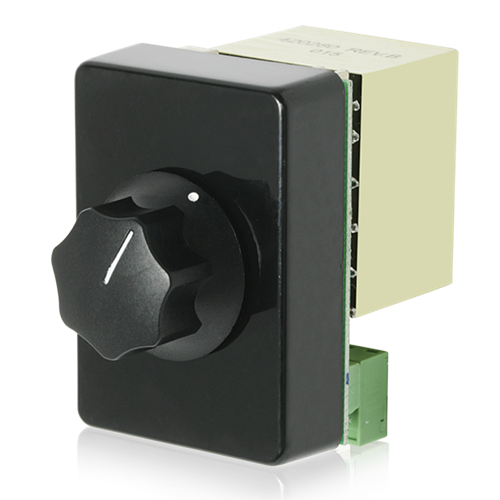

Deluxe, Rack Mounted 70.7V 100W Attenuator, 3dB Steps

AT100-RM
Availability: In stock
Your Price:
$44.99
  • UL Listed
  • 70V / 100V Operation
    DESCRIPTION

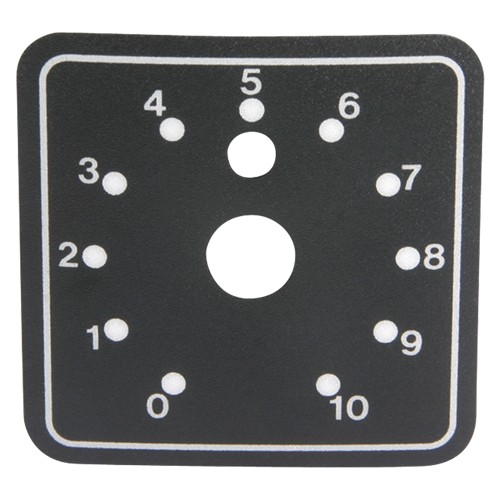

    For attenuation convenience of rack-mounted equipment in cabinets and consoles, the AT attenuators are available without mounting plate for rack panel installation. Attractive matte black polycarbonate dial scale overlay with adhesive backing replaces the mounting plate. Includes skirted black knob. Overlay size is 29 sq. (51mm). (Dial scale overlays to retrofit existing installations are available, see hardware section Model HX23.)

    Features
    • Attractive Matte Black Polycarbonate Dial Scale Overlay with Adhesive Backing Replaces the Mounting Plate. Includes Skirted Black Knob.

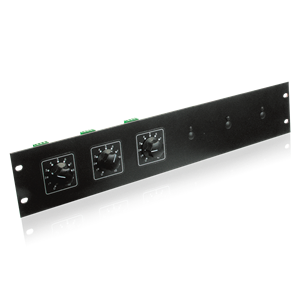

    • Mount Up to Six Attenuators on Atlas ATPLATE-052 Rack Plate

    SPECIFICATIONS
    Power Rating 100W
    Total Attenuation 27dB
    Height 2 3/4" (6.985 cm)
    Width 1 3/4" (4.445 cm)
    Depth 2 1/2" (6.35 cm)
    Shipping Weight 1.50 lbs (0.68 kgs)
    Safety Listed 813, 2043
    Warranty Period 60 months from date of purchase
