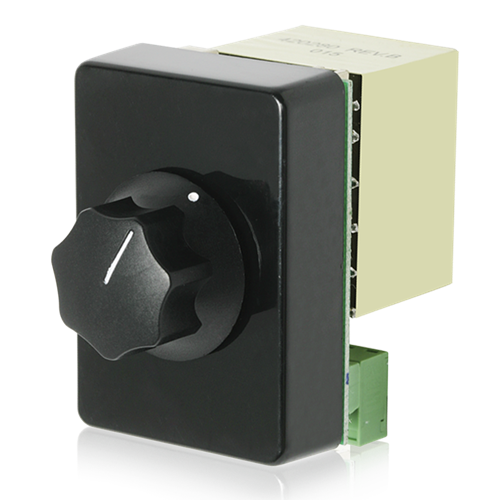

Deluxe Priority, Rack Mounted 100W Attenuator W/Priority Relay, 3dB Steps

AT100-PARM
  • UL Listed
  • 70V / 100V Operation
    High-quality auto transformer AT100-PARM provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems.

    Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation.

    Features a removable terminal block. Includes screen printed dial scale and a skirted black knob.
    Features
    Attractive Matte Black Polycarbonate Dial Scale Overlay with Adhesive Backing Replaces the Mounting Plate. Includes Skirted Black Knob.
    Priority Paging Feature By-Passes the Effect of the Attenuator
    Rack Mount Attenuator for Mounting on to Blank Panels in Equipment Cabinets
    The SPDT Relay is Operated with 24 VDC at 10mA
    Tech Specs
    Power Rating 100W
    Total Attenuation 27dB
    Height 2 3/4" (6.99 cm)
    Width 1 3/4" (4.45 cm)
    Depth 2 1/2" (6.35 cm)
    Shipping Weight 1.50 lbs (0.68 kgs)
    Safety Listed 813, 2043
    Support Files
    DSAttenuators (2 pages) View | Download
    CAD Drawing ATSERIES Download
    Data Sheet ATS001063 Commercial Attenuators Datasheet RevD (5 pages) View | Download
    Installation Sheet ATS004344B AT Volume Control Install Sheet (1 page) View | Download
