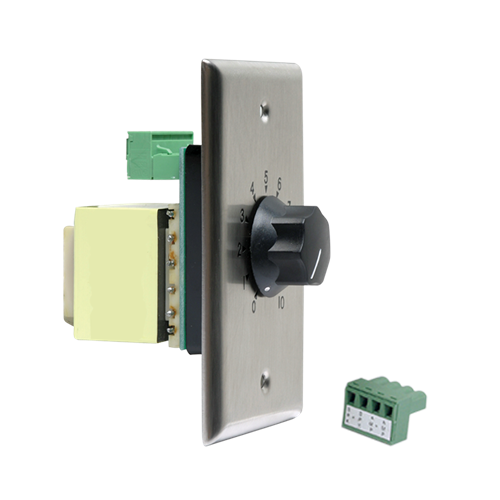

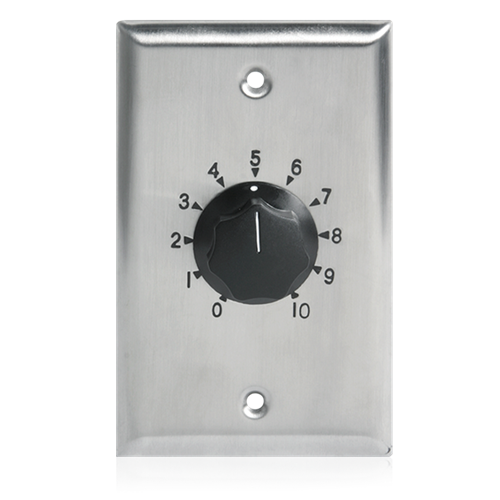

Deluxe Priority, Plate Mounted 70.7V 100W Attenuator W/Priority Relay, 3dB Steps

AT100-PA
Availability: Call Us for Product Availability
Your Price:
$77.99
  • UL Listed
  • 70V / 100V Operation
    DESCRIPTION
    High-quality auto transformer AT100-PA provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob.

    Features
    • Mount into Most 1-Gang E.O. Boxes
    • Priority Paging Feature By-Passes the Effect of the Attenuator
    • The SPDT Relay is Operated with 24 VDC at 10mA
    • Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob

    SPECIFICATIONS
    Plate Size 1 gang
    Plate Type Stainless Steel
    Power Rating 100W
    Total Attenuation 27dB
    Height 4 1/2" (11.43 cm)
    Width 2 3/4" (6.99 cm)
    Depth 2 1/2" (6.35 cm)
    Shipping Weight 1.60 lbs (0.73 kgs)
    Safety Listed 813, 2043
    Warranty Period 60 months from date of purchase
