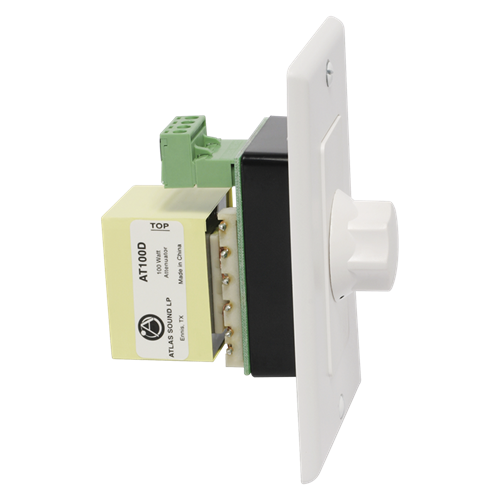

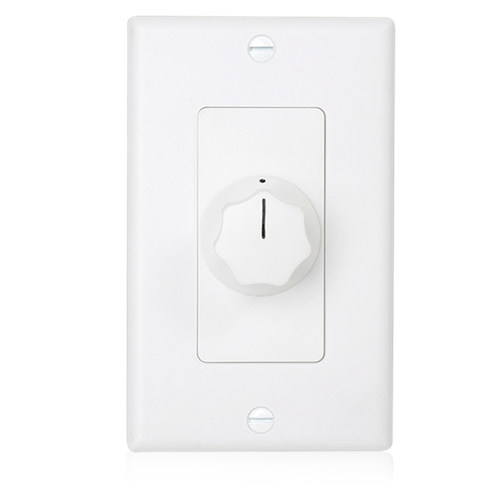

Deluxe Decora Plate Mounted 100W Attenuator, 3dB Steps

AT100D
  • UL Listed
  • 70V / 100V Operation

    Decora style High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and comes complete with white and ivory plastic plates with matching skirted knobs.

    FEATURES
    Attractive Alternative to Commercial Series Attenuators
    Mount into Most 1-Gang E.O. Boxes
    White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style
    SPECIFICATIONS
    Plate Color White - Ivory
    Plate Size 1 gang
    Plate Type Decora
    Power Rating 100W
    Total Attenuation 27 dB
    Height 4 1/2" (11.43 cm)
    Width 2 3/4" (6.985 cm)
    Depth 2 1/2" (6.35 cm)
    Shipping Weight 1.50 lbs (0.68 kgs)
    Safety Listed 813, 2043
    SUPPORT FILES
    CAD Drawing
    AT100D CAD Drawing
    CAD Drawing
    ATSERIES
    Data Sheet
    ATS001063 Commercial Attenuators Datasheet RevD (5 pages)
    Installation Sheet
    ATS004344B AT Volume Control Install Sheet (1 page)
