10" AS Series Surface Mount Speaker

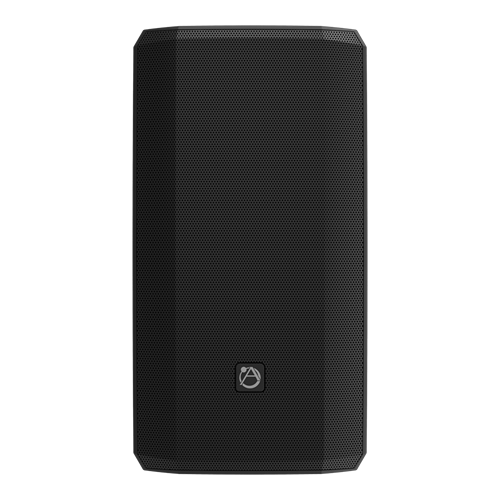

AS-10T-B Front View
10" AS Series Surface Mount, Passive, Black
SKU: AS-10T-B
Availability: Call for Availability
Your Price:
$1,125.99

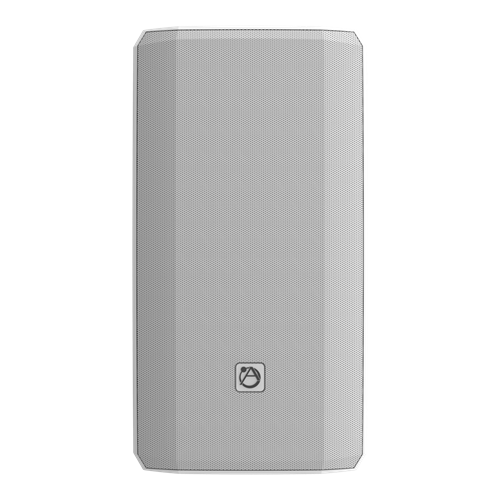

AS-10T-W Front View
10" AS Series Surface Mount, Passive, White
SKU: AS-10T-W
Availability: In stock
Your Price:
$1,125.99
  • 70V100VCAPABLE
  • 8Ω Capable
  • IP55
  • UV Resistant
    DESCRIPTION

    The AtlasIED AS-10T is a high performance, two-way Surface-Mount weather resistant loudspeaker boasting an exceptional performance-to-size ratio for distributed sound reinforcement applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites.

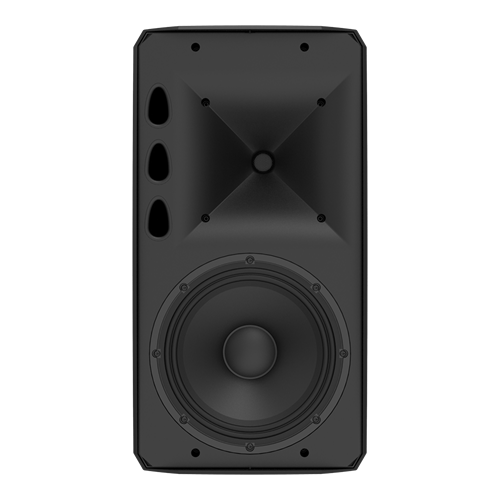

    Featuring a high excursion 10" woofer, seamlessly transitioning to a 1" exit compression driver, the AS-10T delivers a consistent and accurate broadband frequency response, both on and off axis.

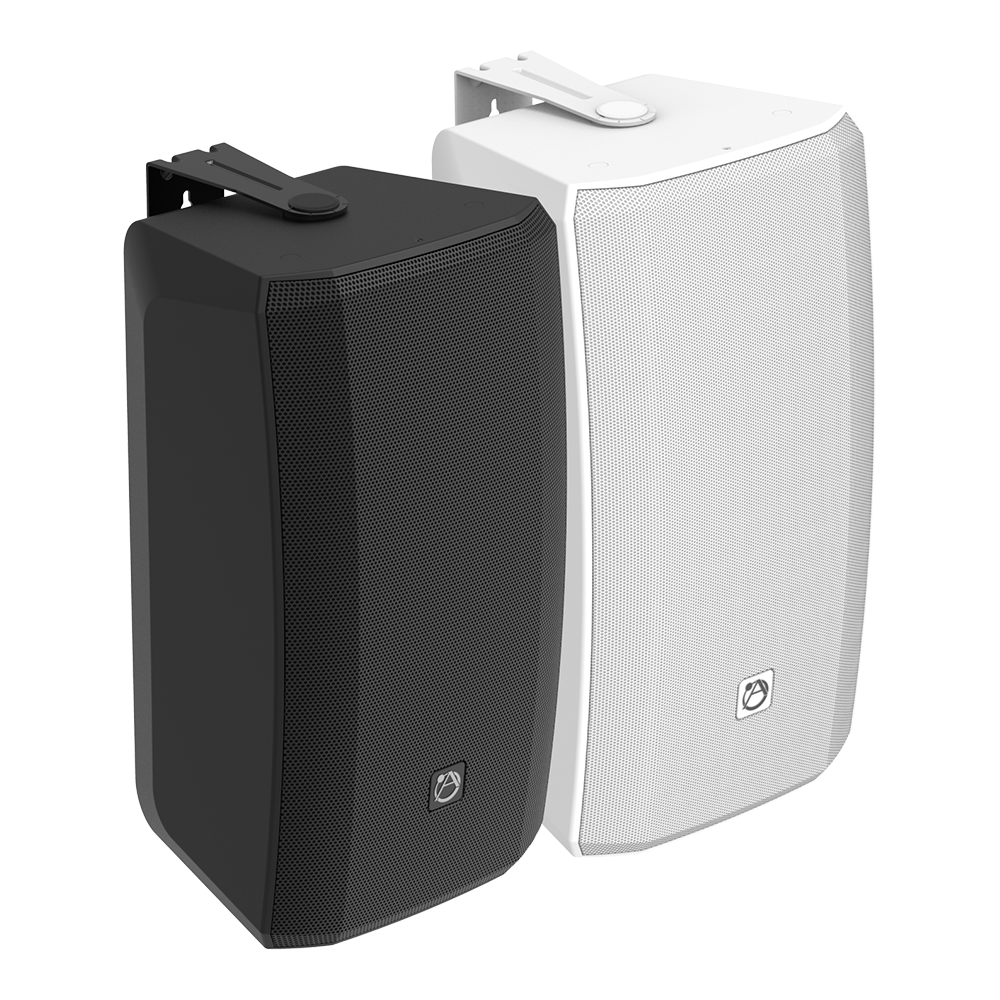

    Available in textured black or white, the outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out.

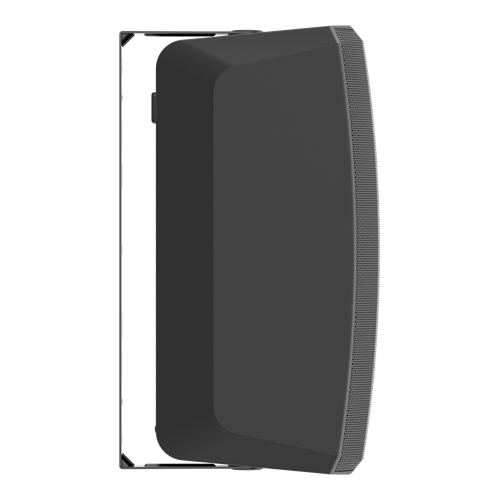

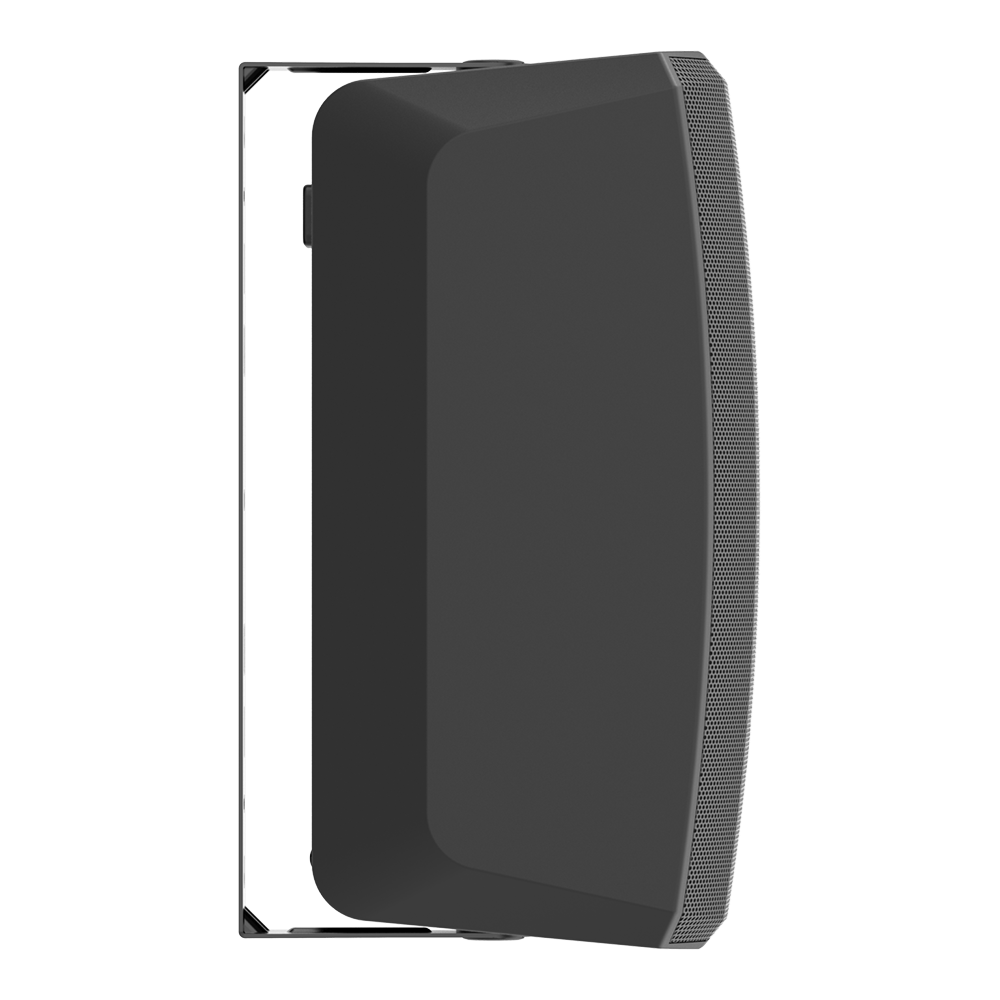

    Safe and effective Installation of the AS-10T is made simple by way of the included slip free yoke mount.

    Equipped with a low insertion loss 120W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover.

    The AS-10T has been sonically matched with the wider range of AS Series models, this allows consistency in installations where there is a mix of products used.

    For the most discerning designers and integrators, a complete suite of EASE™ (including compatibility with EASE Focus), CF2, 3D CAD, and BIM/Revit families are available for download.


    Features
    • Minimalistic and clean industrial design for sensitive architectural constraints
    • Effective coverage for systems with space limitations
    • Extremely consistent horizontal off axis performance
    • Ultra-low insertion loss 120W transformer for dynamic performance in distributed systems
    • High impact ABS enclosure with UV inhibitor
    • IP55 rated
    • Slip-Free yoke mount supplied. Compatible with VESA™ mounts
    • Advanced tunings available via AtlasIED Atmosphere DSP platform

    Applications
    • Bars & Restaurants
    • Hotels, Casinos & Cruise Ships
    • Retail
    • Houses of Worship
    • Education
    • Themed Attractions
    • Transportation
    • Corporate & Business
    • Museums & Courthouses
    • Live Music Clubs

      SPECIFICATIONS
      Type Two-Way, Full Range, Surface Mount Loudspeaker
      Frequency Range (-10dB) 45Hz-20kHz
      Frequency Response (+/- 3dB) 58Hz-18kHz
      System Sensitivity (1W @ 1m) 93dB
      Nominal Coverage Angle (-6dB) 100° x 90°
      POWER HANDLING
      Average 240W
      Programme 480W
      Peak 960W
      Recommended Amplifier Power 480W @ 8 Ohms
      Nominal Impedance 8 Ohms (Min 8.15 Ohms)
      RATED MAXIMUM SPL
      Average 117dB
      Peak 123dB
      With Max. Transformer Tap - Average 114dB
      Transformer Taps - via slide selector switch 120W, 60W, 30W, 15W ( 7.5W 70V) & Low Z operation
      Directivity Index (dB) 8.5
      PHYSICAL
      Dimensions (HxWxD) 23.4" x 12.25" x 11.74" (594.4mm x 311.2mm x 298.2mm)
      Weight 35.63lbs (16.16kg)
      Warranty Period 60 months from date of purchase

      SUPPORT FILES
      AS-10T Data Sheet AS-10T Data Sheet
      AS Series Yoke Mount Installation Guide AS Series Yoke Mount Installation Guide
      AS-10T EASE Data - GLL AS-10T EASE Data - GLL
      AS-10T EASE Data - SPK AS-10T EASE Data - SPK
      AS-10T CFL Data - CF2 AS-10T CFL Data - CF2
      EASE Focus Software v3.1.220 EASE Focus Software v3.1.220
      EASE GLL Viewer 1.1.61.260 EASE GLL Viewer 1.1.61.260
      AS Series Revit_BIM Files AS Series Revit_BIM Files
      AS-10T 2D Drawings - PDF (2 pages) AS-10T 2D Drawings - PDF (2 pages)
      AS-10T 2D Drawings - CAD AS-10T 2D Drawings - CAD
      AS-10T 3D Drawings - CAD AS-10T 3D Drawings - CAD
      AS-10T Image Gallery AS-10T Image Gallery
      Speaker Placement Tool

      The AtlasIED Speaker Placement Tool is designed to make it easy to select the proper positioning of speakers in a given room. Choose your AtlasIED speaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

      This tool is not suitable for sound masking. For assistance with sound masking, please complete our Sound Making Design Request form

      Loudspeaker:
      Transformer Tap Selection (in Watts):
      Unit of Measure:
      Room Length:
      Room Width:
      Ceiling Height:
      Listener Level:
      Average distance from ceiling to ear level:

      # of Rows:
      Number of Columns:
      Total Loudspeakers Required:
      Loudspeaker Spacing:
      First Loudspeaker "x" Placement:
      First Loudspeaker "y" Placement:
      Selected Tap Max SPL in Direct Field:
      Variance to Edge of Coverage:
      Amplifier Power Required for Selected Tap:
      Max Tap SPL in Direct Field:
      Amplifier Power Required for Max Tap:
