Wall Plate 10kΩ Level Control

WPD-VC10K

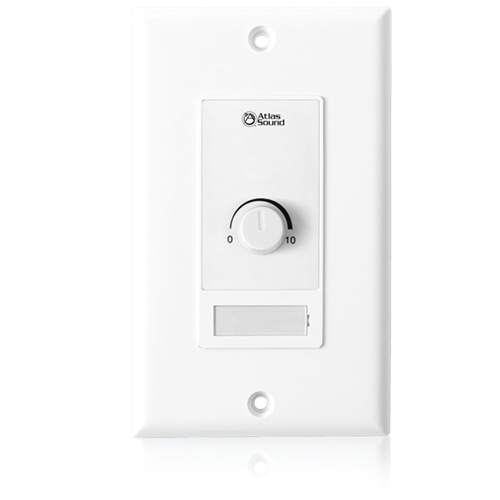

    The AtlasIED WPD-VC10K is a decor style wall plate featuring an adjustable 10kΩ potentiometer designed to remotely control the level of connected AtlasIED products like amplifiers. The unit is constructed of durable ABS material and a removable label guard for easy and clean designation of key switch function. The unit can function with VCA 2 or 3 conductor systems and uses a 2 or 3 conductor interface connection designed to work with the included Phoenix style connector. This unit can function in up to 200 feet from the controlled unit using 22-gauge wire.

    Features
    White Decor Style Plate, ABS Material
    Fits a Single Gang Electrical Outlet
    2 or 3 Conductor Interface Connection
    Removable 3 Position Phoenix Style Connector, 5.08mm Pin Spacing
    Removable Label Guard Allows for Clean Identification
    Tech Specs
    Height 4.5" (114mm)
    Width 2.5" (63mm)
    Depth 0.24" (6.4mm)
    Support Files

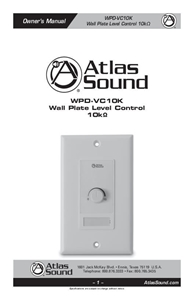

    Owners Manual ATS004434B WPD-VC10K Owners Manual (4 pages) View | Download
