TitanONE Amp Card 100-Volt, Dual Channel 1200-Watt

T1202-230V-T1
Availability: In stock
Your Price:
$3,388.99
  • TitanONE Required
  • Class D Efficiency
  • 100V Operation Only
  • ETL
  • CE
  • Made in USA
  • Fault Reporting
    DESCRIPTION

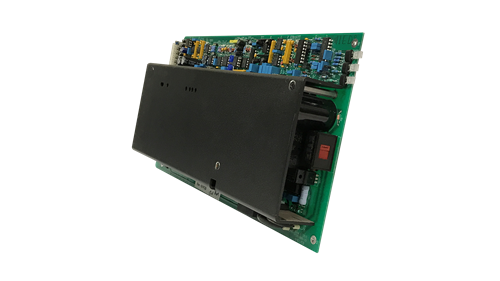

    The T1202-230V-T1 is a class D, dual channel, 1200W total, 100V power amplifier card used in the TitanONE T112 Smart Amplified Mainframe System. Any card may be placed in any slot in the mainframe without requiring any configuration settings to be made on the amplifier cards. This card is designed for use in 220V ~ 240V AC electrical countries.

    Class D operation combined with an integral switch-mode power supply offers many advantages, and the unique IED design makes full use of these benefits. They include:

    • Higher Efficiency
    • Increased Reliability
    • Improved Performance
    • Lower Operating Cost

    Switch-mode operation combined with high voltage power MOSFET devices make it possible to eliminate the heavy, costly, bulky transformers. The card contains no onboard attenuation controls. Attenuation is handled ahead of the power amplifier by the mainframe central processor. The power amplifier has built-in voltage limiting to protect the speakers. In addition, a temperature sensor on the heatsink will automatically shut down an amplifier that becomes too hot to protect the electronics. When used with the TitanONE T112, the amplifier status signals are monitored by the main control processor. Any failures are detected and reported to the IED supervision system to alert the user that service is required.

    The amplifier card has LED indicators located on its front edge. A single green LED will illuminate to indicate that the amplifier is powered on. Each channel on the card also has a multi-color signal LED. It will illuminate green when input signal is present on the channel. This LED changes to yellow to indicate that the channel is clipping. A power switch is provided on the front of each card. It is recessed and requires a tool to operate in order to prevent any accidental switch operation. The switch allows an individual card to be powered down and removed or replaced without affecting any other cards installed in the same mainframe. Each card provides +24VDC through current limiting resistors to operate of the fans in the rear of the mainframe.


    SPECIFICATIONS
    Amplifier Topology Class D
    Power Output 1200W Total, 2CH x 600W at 100V
    Signal to Noise Ratio >85dB
    Operating Temperature Range +32 - +104 (0c - +40c)
    Frequency Response 20Hz - 20kHz, 25% Rated Power
    Total Harmonic Distortion <0.2% @ 2kHz
    Input impedance 20kΩ, Balanced
    Height 6.8" (173mm)
    Width 1.8" (46mm)
    Depth 12.5" (317.5mm)
    Weight 4.0 lbs. (1.8kg)
    Safety Listed T1202-230V-T1
    Safety Listed
    (As part of the T112 Mainframe)ETL Listed to UL 60950-1, UL 62368-1, CSA 60950-1 & CSA 62368-1
    ETL Recognized Component UL 864, UL 2572, ULC S527 & ULC S576
    Warranty Period 36 months from date of purchase
