PoE+ Indoor Wall Mount LCD Endpoint with Talkback Microphone

IP-DM
  • Software License Required
  • Enclosure Sold Separately
  • CETL
  • CE
  • FCC
  • BAA
  • G.711 Capable
  • G.722 Capable
  • Network Ready
  • LCD Display Included
  • PoE+
  • UKCA
  • GCK Optimized
  • One Cable Installation
    DESCRIPTION

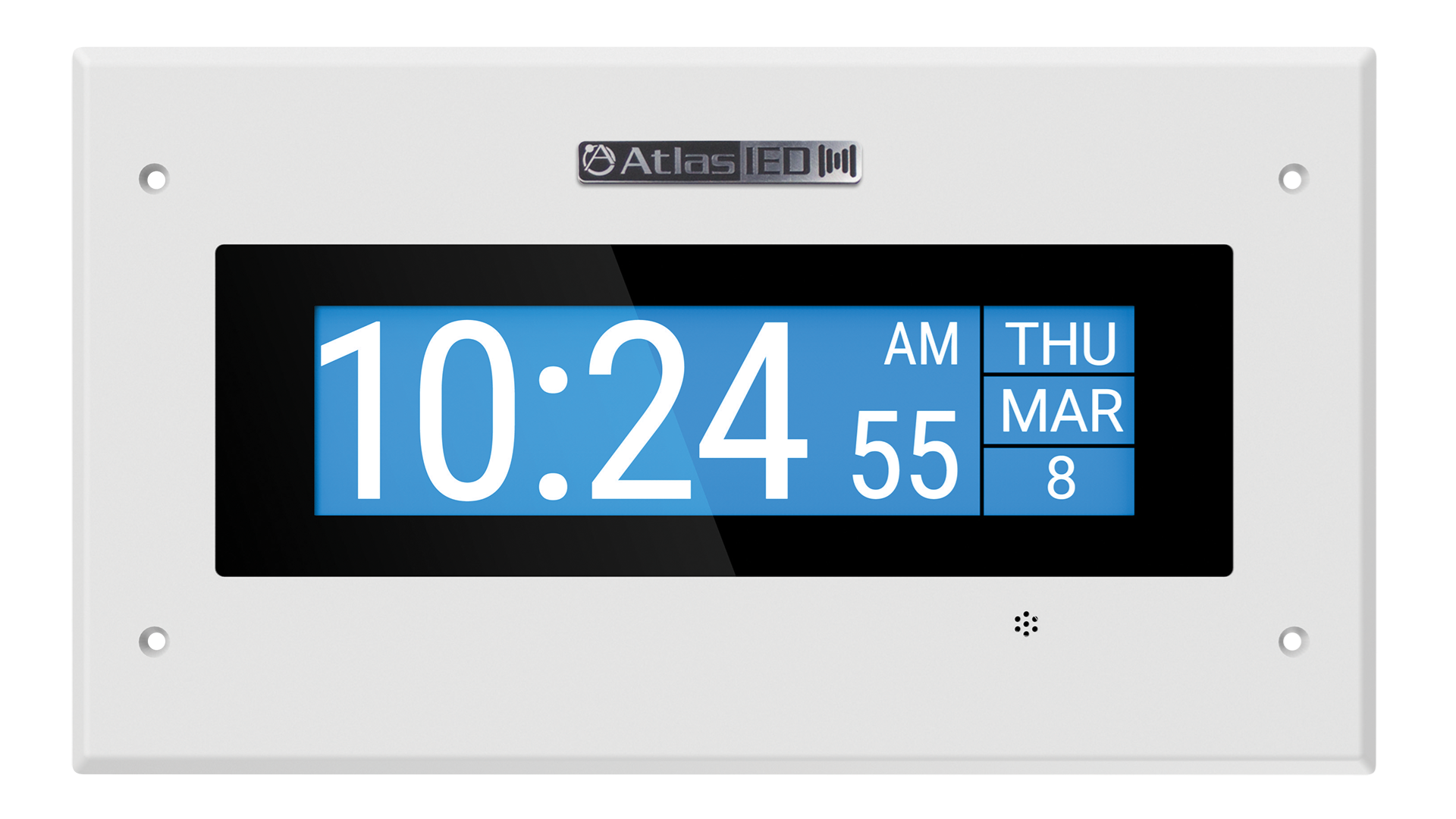

    The AtlasIED IPX Series IP-DM is an indoor wall mount IP LED display with integrated talkback microphone. It leverages VoIP communication solutions to extend notifications with effective visual text alerts for high ambient noise areas or large spaces.

    AtlasIED IP-DM registers as a communication endpoint directly within InformaCast, SA-Announce and GCK Advanced Notification applications, supporting their visual text broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

    In addition to visual signaling, the IP-DM can provide audio to support distributed analog public address systems with the convenience of line level and amplified audio outputs. This line level output is ideal for use with AtlasIED AA, PA, DPA, or CP series amplifiers to power large zones of traditional 25V, 70.7V, or 100V AtlasIED speakers or paging horn speakers.

    In addition to the line level output, the IP-DM provides 2-channels of 15-Watt RMS at 8-ohm amplified output to drive external speakers. It also includes 2 GPI inputs, 1 GPI output and a microphone input for talk back or listen applications.

    Under Title II of the ADA, all state and local governments are required to take steps and ensure effective communication to people with disabilities. The AtlasIED IP-DM display with talkback microphone provides effective communication for all individuals.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    Features

    The IP-DM IP displays are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

    While in Standby, the IP-DM displays save time and eliminates the need for a separate master clock system by utilizing Network Time Protocol (NTP) to stay up to date. When active, the IP-DM display changes from time to visual notifications by Scrolling text content over the high resolution LCD.

    The IP-DM features include Auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP displays on your Voice VLAN, similar to a VoIP handset.

    Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.

    Mounting hardware: (sold separately)

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!


    FEATURES
    • Network Features

    • Dynamic or Static IP Address
    • Auto Registration and Auto Provisioning
    • IEEE802.3 10/100Base-T Ethernet
    • Network Controlled, High Resolution Multi-Color Liquid Crystal Display

    • IEEE 802.1q Tagging
    • Multicast Enabled Network Clock Control
    • Cisco SRST compliant
    • Power Using IEEE802.3af Compliant PoE Switch, IEEE802.3at Compliant PoE+ Switch, or Local 24VDC PSU

    • RJ-45 Female Input on PCB
    • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or  IEDNet+ for AtlasIED Applications

    • Static Registration: HTTP GUI for Static Configuration
    • Additional Features
    • 2 General Purpose Inputs
    • 1 General Purpose Output (2A @ 30 VDC)
    • External Power Supply Option

    SPECIFICATIONS
    Width 13.89" (352.81mm)
    Height 7.75" (196.85mm)
    Depth 3.25" (82.55mm) Wall Mount
    Depth 3.11" (78.99mm) Flush Mount
    Safety Listed 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC

    SUPPORT FILES

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!

    Discover App v1.3.2.0 IPX Firmware v1.6.4 139 MB
    IPX Series Firmware Version 1.6.4 Release Notes (1 page) 121 KB
    IPX Series Install Sheet (4 pages) 679 KB
    IP-DM Datasheet (7 pages) 373 KB
    IPX Endpoint FAQ (5 pages) 138 KB
    IPDCM+ Enclosure CAD Drawing 310 KB
    IPDCM+ CAD Drawing 646 KB
    IPX Endpoint Quick Start Guide (1 page) 115 KB
    AtlasIED Discover Quick Start Guide (7 pages) 2 MB
    IPDCM+ Revit Drawing 428 KB
    IP Speakers UK Declaration of Conformity (1 page) 89 KB
    Intertek Authorization to Mark (2 pages) 125 KB
    IP_CB-Cert (2 pages) 331 KB
    IP Speakers EC Declaration of Conformity (1 page) 68 KB
    IPX System Firmware Release 1.6.4 13 MB
    IPX Endpoint Firmware Update Guide (1 page) 141 KB
    IPX Product Overview (3 pages) 549 KB
