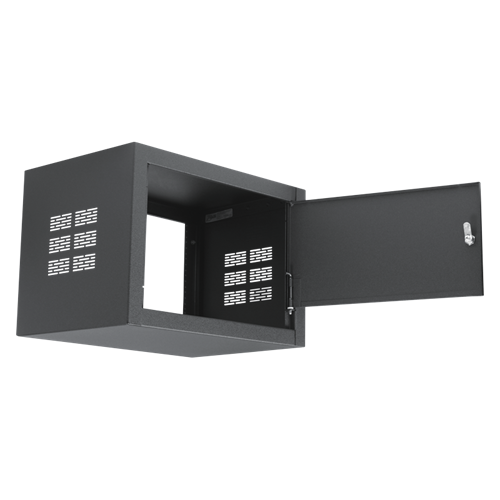

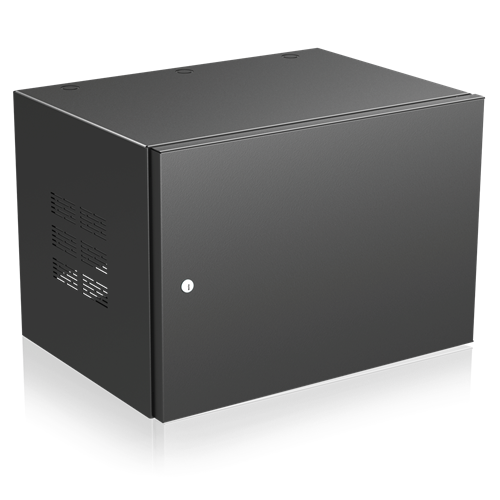

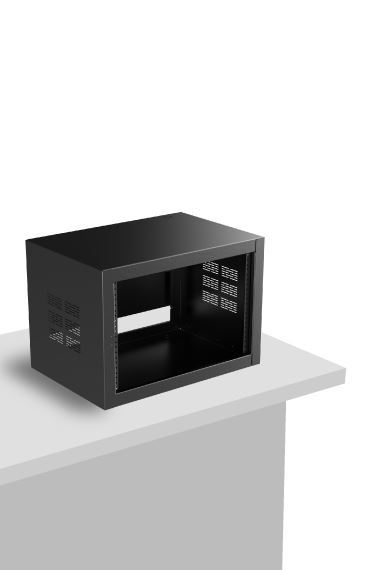

Welded & Assembled Desk Top Cabinet - 7 RU (Shown with OPTIONAL front door)

407-15
Availability: In stock
Your Price:
$528.99
  • BAA
  • TAA
    DESCRIPTION

    This assembly provide desk-top access to (19") control and monitor equipment.

    This model is 16-gauge CRS and include one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel.

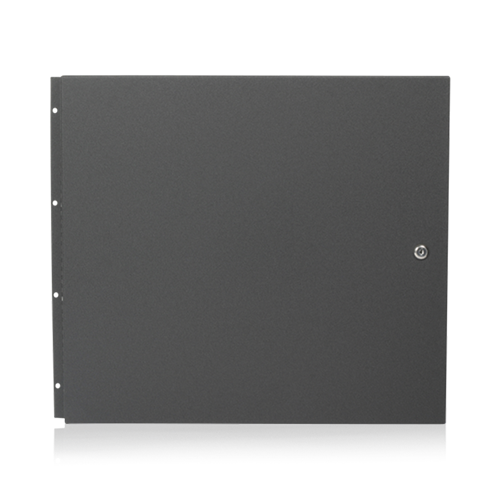

    The 407-15 includes locking rear door with spring-loaded hinge, side vents and optional front door (SFD407) with self-tapping screws.

    Inside (usable) dimensions are 17 3/4" W x 14 1/8" D.

    Features
    • 11-Gauge CRS Tapped Mounting Rails
    • 16-Gauge CRS Cabinet
    • 5/8" - 5/8" - 1/2" EIA Standard Panel Mount Spacing
    • 5/8" Offset Rails for Panel Mount
    • Completely Assembled and All-Welded Construction
    • Internal Louvers on Each Side
    • Keyed Cylinder Lock on Rear Door
    • Optional Front Surface Door Available with Right or Left-Hand Hinging Capability
    • Spring-Loaded Hinge for Easy Removal of Rear Door
    SPECIFICATIONS
    Rack Units 7
    Height 15 1/2" (39.37 cm)
    Width 22 5/16" (56.68 cm)
    Depth 15 3/8" (39.05 cm)
    Shipping Weight 36.00 lbs (16.33 kgs)
    Warranty Period 60 months from date of purchase
    SUPPORT FILES
    407-15 CAD Drawing 407-15 CAD Drawing
    Download
    All Racks AE Specs Only All Racks AE Specs Only
    Download
