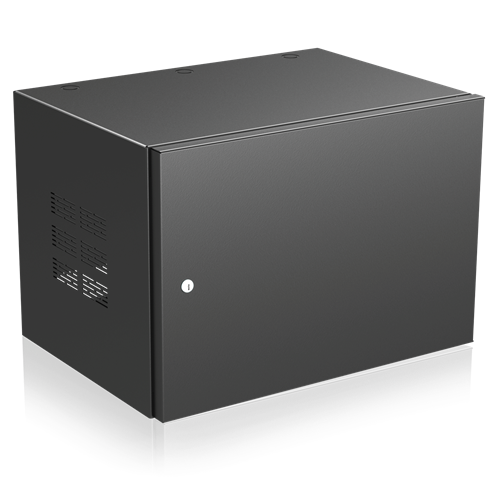

Welded & Assembled Desk Top Cabinet - 14 RU (Shown with OPTIONAL front door)

414-15
  • TAA
  • BAA


    The Atlas 414-15 provides desk-top access to (19") control and monitor equipment.

    This model is constructed of 16-gauge CRS and includes one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel.

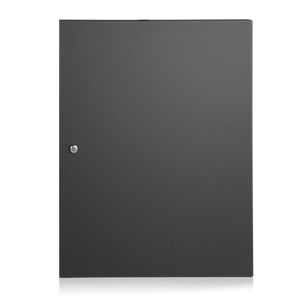

    The 414-15 includes locking rear door with spring-loaded hinge, side vents and optional front door (SFD414) with self-tapping screws.

    Inside (usable) dimensions are 17 3/4" W x 14 1/8" D.

    FEATURES
    11-Gauge CRS Tapped Mounting Rails
    16-Gauge CRS Cabinet
    5/8" - 5/8" - 1/2" EIA Standard Panel Mount Spacing
    Completely Assembled and All-Welded Construction
    Internal Louvers on Each Side
    Keyed Cylinder Lock on Rear Door
    Optional Front Surface Door Available with Right or Left-Hand Hinging Capability
    Spring-Loaded Hinge for Easy Removal of Rear Door
    SPECIFICATIONS
    Rack Units 14
    Height 27 3/4" (70.49 cm)
    Width 22 5/16" (56.68 cm)
    Depth 15 3/8" (39.05 cm)
    Shipping Weight 52.00 lbs (23.59 kgs)
    SUPPORT FILES
    CAD Drawing
    414-15 CAD Drawing
    Data Sheet
    400 Series Data Sheets (3 pages)
    A & E Specifications
    All Racks AE Specs Only
