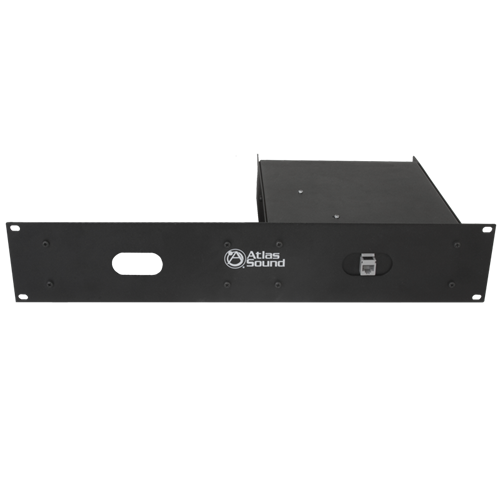

IP Addressable Single Zone Interface with Balanced Line Level Output

Name: Discontinued Obsolete SKU
Brand: AtlasIED
SKU: ZC1PRO-CK
Rating: 5 (5 reviews)

ZC1PRO-CK

DESCRIPTION

The ZC1PRO-CK Zone Controller Pro is an analog gateway for AtlasIED IP paging systems. This model is compatible with AtlasIED's ControlKom©2.0 and Syn-App's SA Announce software.

The ZC1PRO-CK provides a line level output to connect to AtlasIED commercial amplifiers and an 8Ω, 25V, 70.7V amplified output to drive small analog speaker zones. It also includes 2 GPI Inputs, 2 GPI Outputs and Microphone input for talk back applications. Power can be supplied via plug-in transformer (IPS-PSU-CK) or by 802.3af compliant PoE network switches.

All control features of the ZC1PRO-CK are software controlled.

Features

Use with ControlKom® 2.0 or Syn-Apps SA Announce software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
2 GPI Contact Closure Inputs, and 2 GPI Relay Outputs

SPECIFICATIONS

Rack Units	2RU (If ZCM-V2FP is Used)
Power Rating	9 Watts RMS into an 8Ω Load w/ 12VDC Input
Inputs	RJ-45 Female on PCB
Outputs	600Ω, 8Ω, 25V, or 70.7V
Power Source	IEEE 802.3af Compliant POE Network Switches / Local 12VDC - 18VDC PSU
Network Control	Multicast Enabled Networks
Sample Rate	50V @ 500mA Max
Input Minimum	1mA to Run on 50V Max
