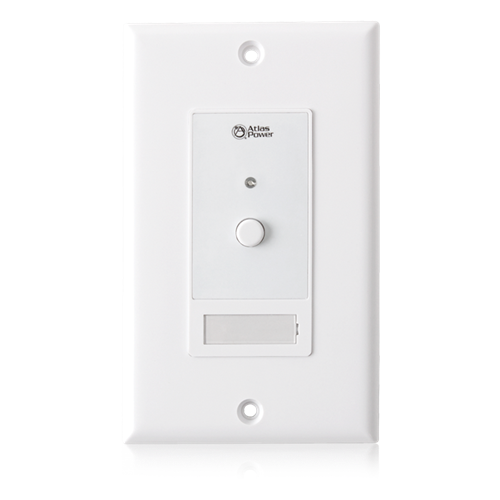

Wall Plate Push Button Switch, Momentary Contact Closure

WPD-SWM
Availability: In stock
Your price (USD): $46.99
    DESCRIPTION

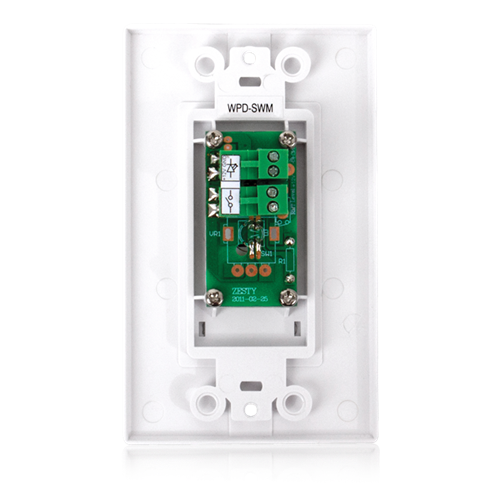

    he AtlasIED WPD-SWM is a decor style wall plate featuring a push button switch that activates/deactivates a momentary contact closure. This product is designed to be used with compatible Atlas Power products that are designed to be remotely activated such as the ECS-6RM, TSD-SEQ6, and ECS-3 sequencers. The unit is constructed of durable ABS material and includes a red LED system status indicator as well as a removable label guard for easy and clean designation of key switch function. The unit has a four conductor interface connection designed to work with the included Phoenix style connector. This unit can function in remote activation scenarios up to 200 feet from the controlled unit using 22-gauge wire.


    FEATURES
    • White Decor Style Plate, ABS Material
    • Fits a Single Gang Electrical Outlet
    • Red LED System Status Indicator
    • 4-Conductor Interface Connection
    • Removable 4 Position Phoenix Style Connector, 5.08mm Pin Spacing
    • Push Button Switch Type
    • Removable Label Guard Allows for Clean Identification

    SPECIFICATIONS
    Height 4.5" (114mm)
    Width 2.5" (63mm)
    Depth 0.24" (6.4mm)

    SUPPORT FILES

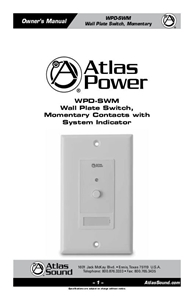

    Owners Manual
    ATS004430_WPD-SWM_Owners_Manual
