Wall Plate Key Switch, Momentary Contact Closure

Availability: In stock
Your Price:

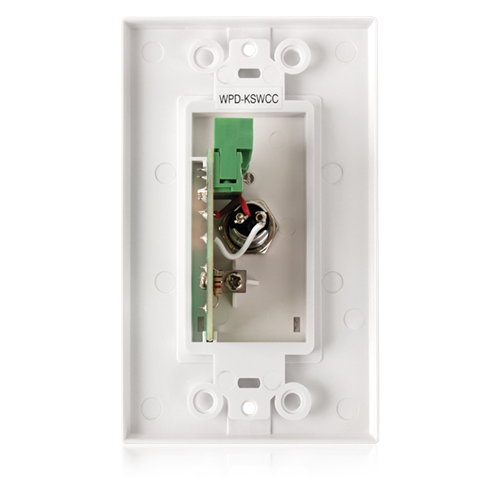

    The AtlasIED WPD-KSWM is a decor style wall plate featuring an industrial tubular key switch that activates/deactivates a momentary contact closure. This product is designed to be used with compatible Atlas Power products that are designed to be remotely activated such as as the TSD-SEQ6, and ECS-3 sequencers. The unit is constructed of durable ABS material and includes a red LED system status indicator as well as a removable label guard for easy and clean designation of key switch function. The unit has a four conductor interface connection designed to work with the included Phoenix style connector. This unit can function in remote activation scenarios up to 200 feet from the controlled unit using 22-gauge wire.

    • White Decor Style Plate, ABS Material
    • Fits a Single Gang Electrical Outlet
    • Red LED System Status Indicator
    • 4-Conductor Interface Connection
    • Removable 4 Position Phoenix Style Connector, 5.08mm Pin Spacing
    • Industrial Tubular Key (Removable) Switch Type
    • Removable Label Guard Allows for Clean Identification

    Height 4.5" (114mm)
    Width 2.5" (63mm)
    Depth 0.24" (6.4mm)
    Warranty Period 60 months from date of purchase

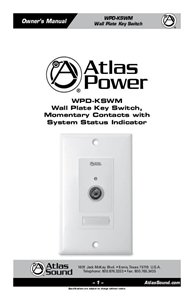

    WPD-KSWM Owners Manual (4 pages) WPD-KSWM Owners Manual (4 pages)
