Wall Plate Input Select Switch, Volume Control 10k Pot with System Indicator

WPD-MIX42RT

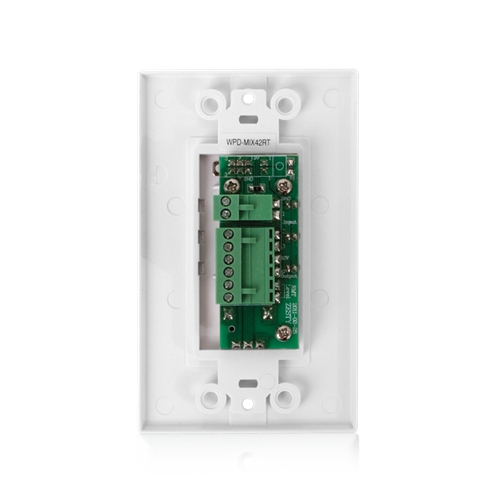

    The WPD-MIX42RT is a decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer.   The WPD-MIX42RT features an audio source slide selector as well as a source volume control.  The unit includes an LED indicator to indicate which source is selected and if it is active.  The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors.  When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.

    FEATURES
    Designed for Remote Activation of Atlas TSD-MIX42RT
    Input Select Slide Switch
    Level Control Via On Board 10kΩ Potentiometer
    System Status Indicator (Red)
    8-Conductor Interface Connection
    Label Guard
    SPECIFICATIONS
    Height 4.5" (114mm)
    Width 2.5" (63mm)
    Depth 0.24" (6.4mm)
    SUPPORT FILES

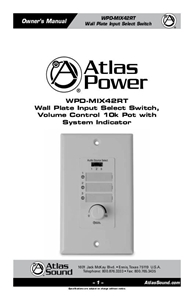

    Owners Manual ATS004428_WPD-MIX42RT_Owners_Manual (4 pages) View | Download
