4x2 Mic/Line Mixer with Priority Sense and Remote Control

Availability: In stock
Your Price:
  • Power Supply Sold Separately
  • CE

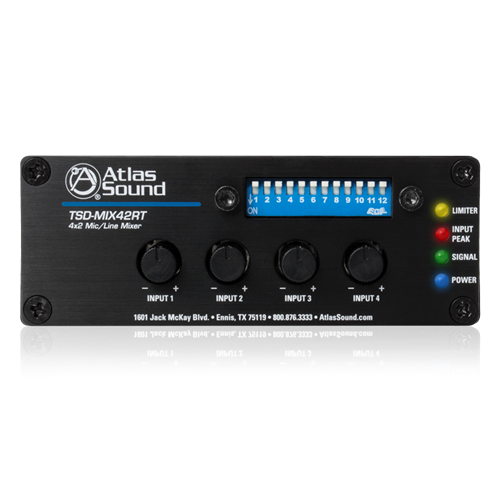

    The AtlasIED TSD-MIX42RT 4x2 mic/line mixer is ideal for applications where paging, priority music override and/or remote input selection with level control are required. Use alone or in conjunction with amplifiers in meeting rooms, digital signage, luxury suites, and other applications requiring versatile, stereo or mono multi source mix control.

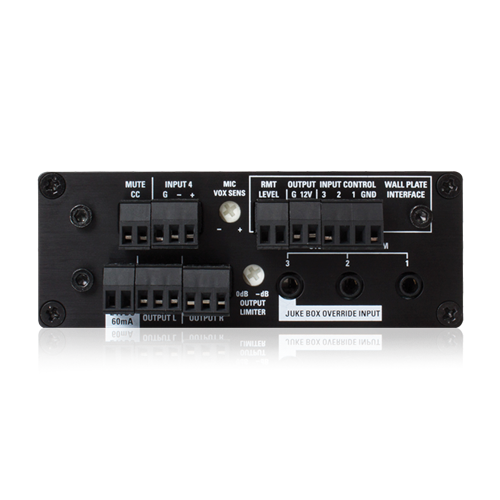

    The unit includes one mic/balanced line input via removable Phoenix style connector and three stereo 3.5mm inputs. Switchable phantom power is provided for the mic input to facilitate condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter @ 125Hz also is available on the mic input to minimize bass rumble and low frequency feedback.

    The TSD-MIX42RT can be used in conjunction with a WPD-MIX42RT decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer. The WPD-MIX42RT features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.

    Priority paging can be accomplished via contact closure or VOX trigger on Input 1 that will mute Inputs 2, 3, or 4 (assignable). Remote level control feature allows use of the AtlasIED AAVC-10K or WPD-VC10K decorative wall plate control for convenient remote adjustment of either the entire Master mix bus or Inputs 1, 2, 3.  A variable output limiter provides system protection by reducing clipping and distortion - which is especially useful when mixing mic and/or line sources with varying volumes.

    Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.  Click here to use the TSD Power Calculator to find the correct power supply for your application.

    • Stereo or Mono Configurations
    • One Balanced Mic/Line Input
    • Three Unbalanced Stereo Line Inputs 3.5mm
    • 12dB/octave High Pass Filter @ 125Hz Available on the Mic Input
    • Priority Paging Via Contact Closure or VOX Trigger on Input 1
    • Remote Level Control Feature Allows use of the WPD-VC10K Wall Plate Control
    • Power Supply Sold Separately

    Input impedance 1.2KΩ Balanced, 600Ω Unbalanced
    THD .06% & 1kHz
    THD .06% @ 1kHz
    Phantom Power 24VDC Defeatable
    Low Cut Filter 125Hz/12dB Defeatable
    Power Consumption 60mA
    Line Input Level 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
    Mic Input Level 46dB Gain 10mV (-40dBV) Balanced
    Output impedance 300Ω Balanced, 150Ω Unbalanced
    Line Output Level 1V (0dBV) In
    Frequency Response 20Hz - 20kHz (+/-1dB)
    Frequency Response 20Hz - 20kHz (±1dB)
    Signal to Noise Ratio Line to Line 85dBV
    Signal to Noise Ratio Mic to Line 78dBV
    Voltage 24VDC, 60mA
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 5.2" (13.2 cm)
    Weight 13oz., .3kg
    Voltage Compatibility 24V
    Warranty Period 36 months from date of purchase

    TSD Series CAD Drawing TSD Series CAD Drawing

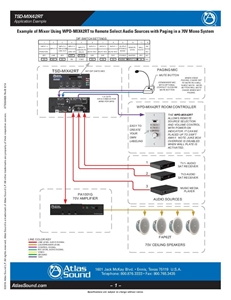

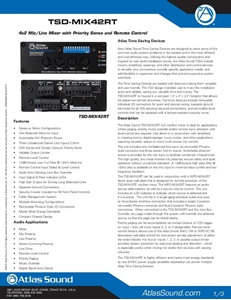

    TSD-MIX42RT Datasheet (3 pages) TSD-MIX42RT Datasheet (3 pages)

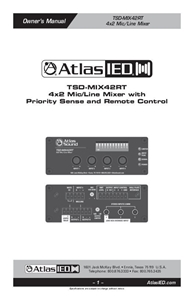

    TSD-MIX42RT Owners Manual (16 pages) TSD-MIX42RT Owners Manual (16 pages)

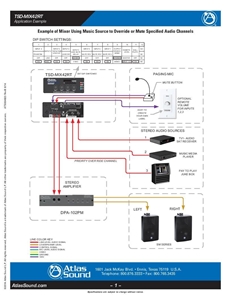

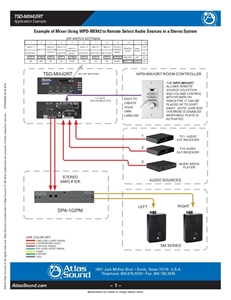

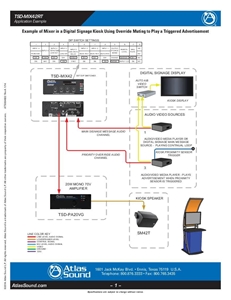

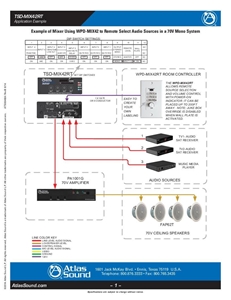

    TSD-MIX42RT_App_1 (2 pages) TSD-MIX42RT_App_1 (2 pages)
