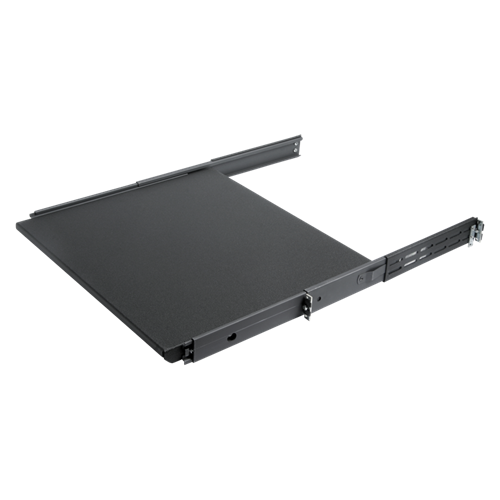

Sliding Shelf / Tray for Cabinets with Front & Rear Mtg. Rails

VTD1-16
  • TAA
  • BAA
    Versatile shelf can be used upside-down as a tray with a protective lip or right-side up as a shelf. Unit provides easy access to 16 3/4" wide (max.) keyboards, video tape recorders, and control equipment. Solid bearing slides extend 17" outside of cabinet rails and include lock-out protection. It mounts 19" W cabinets that are 18 1/2" to 25 1/2" deep which are equipped with front and rear mounting rails. The 16-gauge CRS assembly is finished in black epoxy. It supports up to 85 lbs. (38.56kg) and includes necessary hardware.
    Features
    Perfect for Systems that Require a Computer to Be Present for Set-up
    Requires Rear Rack Rails to Be Installed in Rack for Installation
    Sliding Shelf/Tray Worksurface
    Tech Specs
    Rack Units 1
    Color Ebony Black
    Height 1 3/4" (4.445 cm)
    Width 16 3/4" (42.55 cm)
    Shipping Weight 11.00 lbs (4.99 kgs)
    Safety Listed 1678
    Support Files
    CAD Drawing VTD1-16 Download
