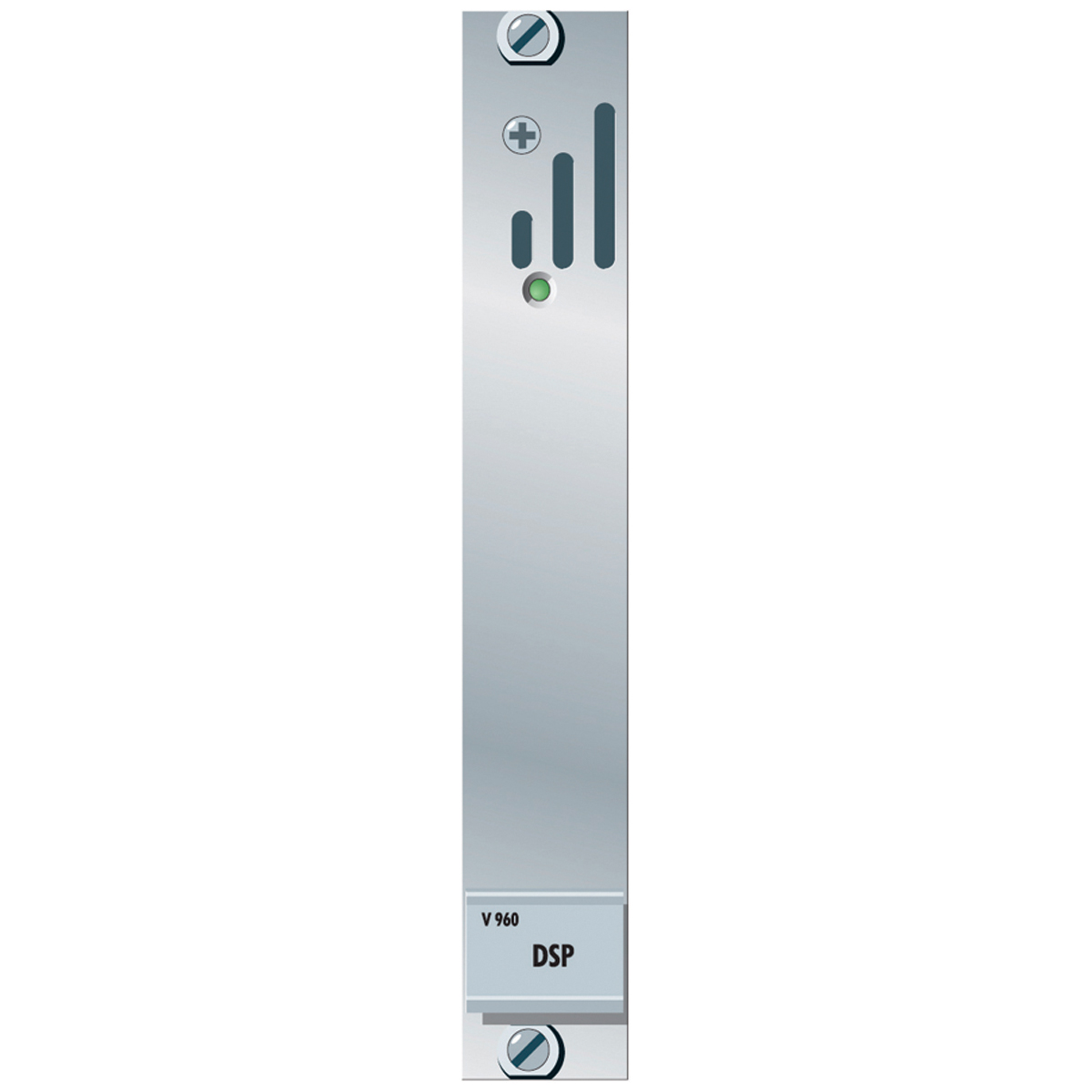

DSP Card


    The DSP card V960 is equipped with 4 audio DSPs, which can be loaded with various software plug-ins. Each software plug-in occupies 1 DSP. The software plug-ins are described in separate documents.

    By means of the optional DSP delay plug-in V962 the functions of the card can be upgraded with 64 additional delay channels, each of them having a maximum delay time of 682 ms.

    Up to 4 software plug-ins can be freely combined simultaneously on 1 V 960 DSP card, whereas up to 256 different input channels can be processed at the same time.

    The following software plug-ins are available:
    • Mixing (S MIX)
    • Gain control (S GAIN)
    • Dynamics (S DYN)
    • Parametric equalizer (S PEQ)
    • VU and PPM meter/tone generator (S LEM)

    • Provides DSP Functionality to the Varizone System
    • Designed for Use in the V212C-HDD and V888 VADIS Frames

    Resolution 24 bit
    Number of DSPs 4
    Power Consumption 1.2 A max
