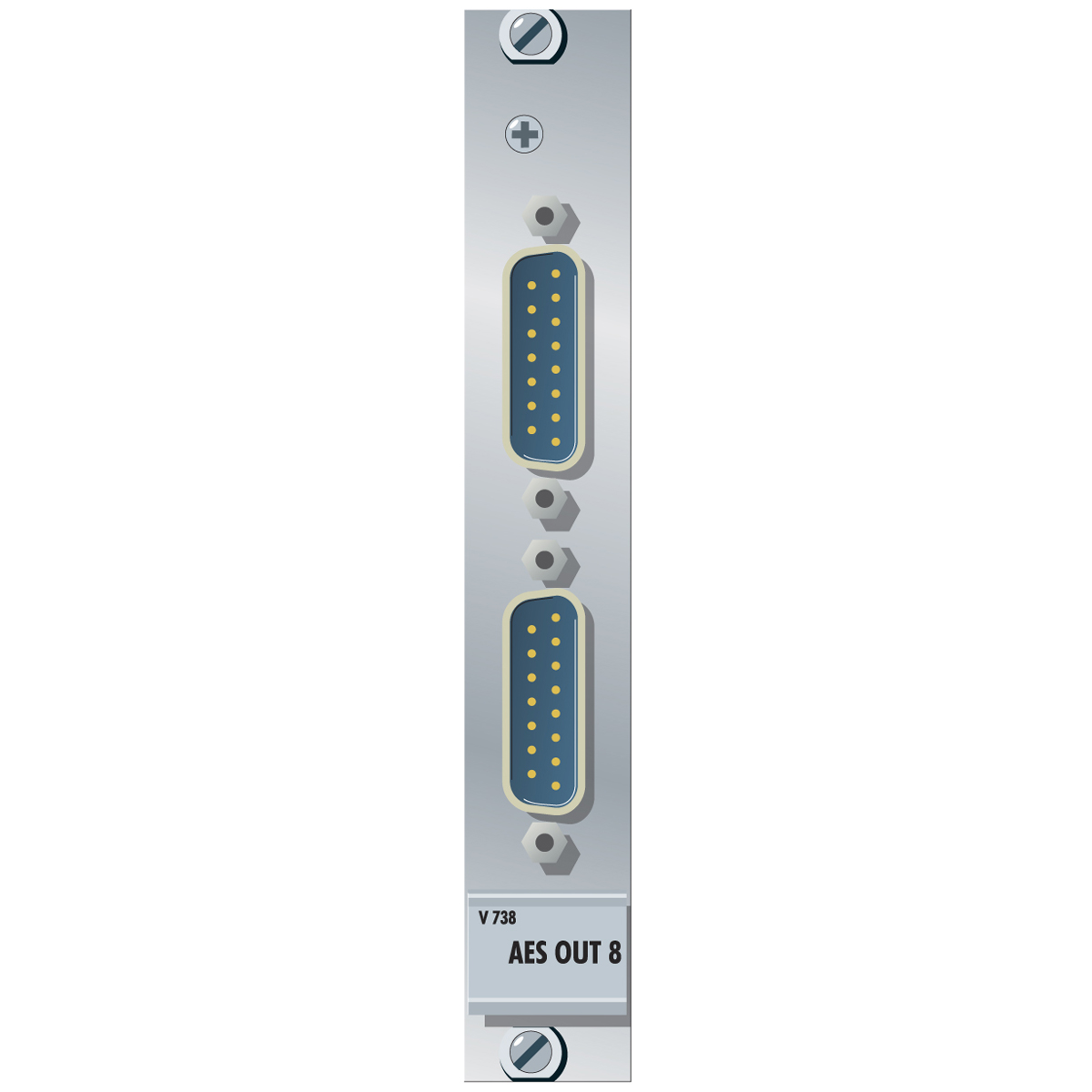

AES Output Card 8-CH

V738

DESCRIPTION

The plug-in card V738 is an 8-channel output card for the output of AES3 or AES3-id signals from the VADIS system. The signal format is determined per channel by means of a jumper.

FEATURES

Provides Output of 8 AES Channels
Designed for Use in the V212C-HDD and V888 VADIS Frames

SPECIFICATIONS

Number of Audio Channels	8, Balanced, with Transformers
Connector Type	2 x D-SUB 15-Pin, Male
Carrier - level	3.7 Vpp @ (2 to 7 V) Measured Across 110 Ω
Data - Jitter	1.5 ns Max.
Data Format	AES3-1992
