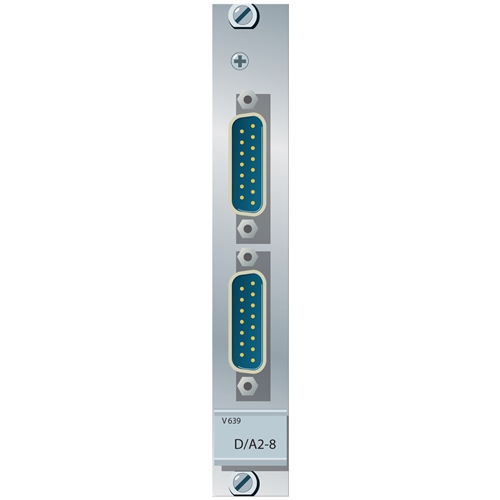

D/A Analog Output Card 8-CH 24 BIT

V639

    The plug-in card V639 includes an 8-channel delta-sigma D/A converter with electronically balanced outputs for the output of analog audio signals from the VADIS system. The digital signals coming from the VADIS system are processed and output with a word length of up to 24 bit. The full scale output level is adjustable via jumpers to +12 dBu, +15 dBu, +16 dBu, +22 dBu or +24 dBu.
    Each output has a mute relay, which ensures that no noise can be heard when the system is switched on and off.

    FEATURES
    Provides 8 Analog Output Channels
    Designed for Use in the V212C-HDD and V888 VADIS Frames
    SPECIFICATIONS
    Sampling frequency 32 kHz min., 48 kHz max.
    Connector Type 2 x D-SUB 15-pin, male
    Output impedance 50Ω
    Minimum Load 600Ω
    Output Channels 8, Electronically Balanced
    Resolution 24 bit
    Power Consumption 1.1 A typ. @ +5 V
    Unbalanced of Output Voltage < -54 dB typ. @ 1 kHz, RL
