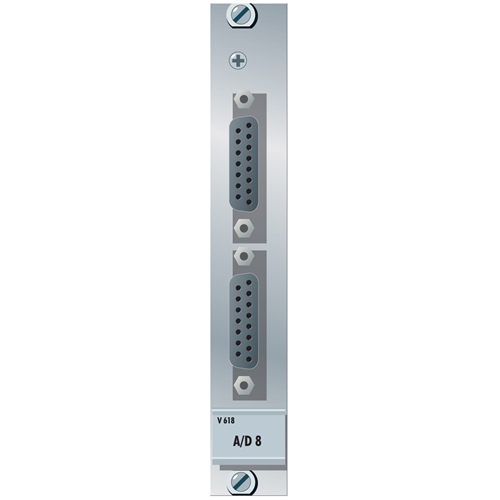

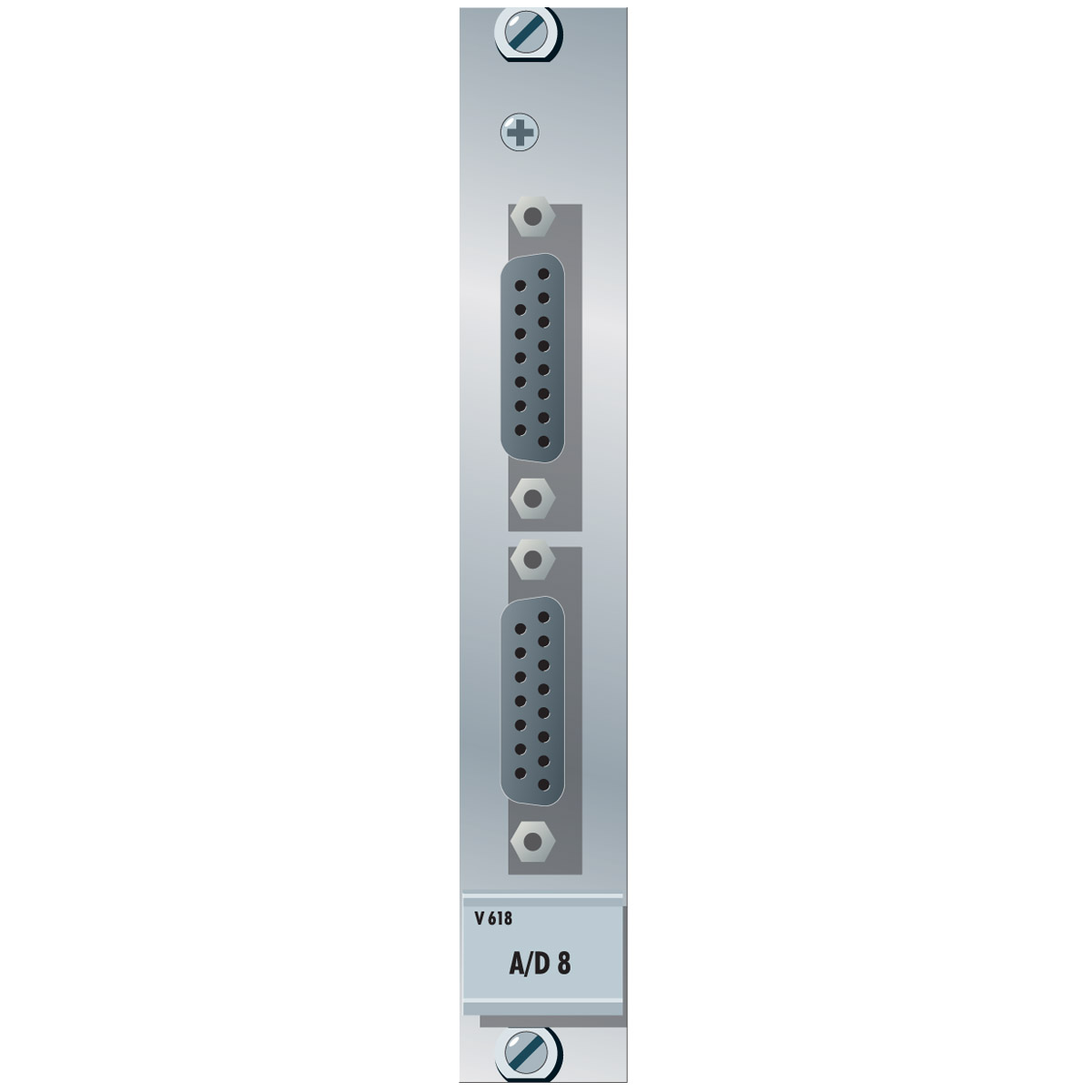

A/D Analog Input Card 8-CH 24 BIT

V618
    DESCRIPTION

    The plug-in card V618 is a 8-channel 24 bit enhanced A/D converter card for the input of analog signals into the VADIS system. The module operates with sample frequencies of 44.1 kHz or 48 kHz. The input signals are fed into the VADIS system with a word length of up to 24 bit via symmetrical inputs. The analog input level at digital full scale is adjustable via jumpers to +12 dBu, +15 dBu, +16 dBu, +22 dBu or +24 dBu.


    FEATURES
    • 8 Channel Analog Input Card
    • Designed for Use in the V212C-HDD and V888 VADIS Frames

    SPECIFICATIONS
    Input channels 8, Electronically Balanced
    Connector Type 2 x D-SUB 15-pin, Female
    Resolution 24 bit
    Sampling frequency 44.1 kHz or 48 kHz
    Input impedance 24 kΩ Differential, 18 kΩ Common Mode
    Input Voltage Range +40 V max., -40 V min.
    Power Consumption 1.1 A typ. @ +5 V
