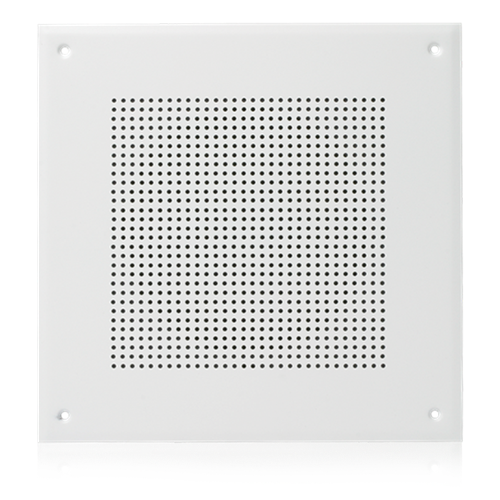

8" Dual Voice Coil In-Ceiling Speaker for Fire Signaling with 5-Watt 25V Transformer and U161-8 Baffle

Availability: In stock
MSRP (USD): $167.99
  • UL Listed
  • BAA
  • TAA
  • CSFM Listed
  • 70V100VCAPABLE

    AtlasIED's UHT25-2C-U161-8 are 8" diameter dual voice coil speakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, dual factory-mounted 25V transformer, 6" color-coded leads, DC blocking capacitors and a 161-8 baffle.
    To comply with UL requirements, speaker packages must be used with UL-approved enclosures

    • Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
    • Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
    • Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
    • UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeaker Reproduces Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
    • Dual 1" Voice Coils

    Frequency Response 60Hz - 8kHz
    Sensitivity 94dB Peak, 91dB Avg.
    Power Taps .5, 1, 2, & 5 Watts
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Safety Listed 1480
    Warranty Period 60 months from date of purchase

    UHT / UKT Series Datasheet (2 pages) UHT / UKT Series Datasheet (2 pages)
