Texas Tough Fan Kit for 35" Deep Racks

TT-FK10-1
MSRP (USD): $454.99
    DESCRIPTION

    The TT-FK10-1 fan kit provides high power effective dissipation of heat for equipment mounted in Texas Tough 35” deep cabinets. This cost-effective, high quality unit requires no panel space and features a 10" diameter 550 CFM propeller fan which quietly out-performs packaged blowers that use valuable cabinet rack space. The fan motor is a continuous duty shaded pole type with sealed ball bearings, die cast aluminum housing and automatic reset thermal protector. The fan is suitable for exhaust cooling or intake circulation and the included twelve 16-guage CRS filter cover plates allow for cooling path control.

    On the outside and inside users are protected from rotating blades by chrome plated finger guards. The fan is powered by the 6’ polarized 115VAC power cord with molded plug.

    The CFT-125 (sold separately) fan thermostat can be used with the TT fan kit to help regulate ventilation control


    FEATURES
    • Designed for Texas Tough 35" deep racks
    • Mounts in existing Texas Tough rack top panel
    • One 10" high-power fan with 550 CFM rating to provide rapid and efficient heat dissipation
    • Suitable for exhaust cooling or intake circulation
    • Includes Texas Tough filter cover plates to help control cooling path
    • Finger guards and power cord included

    SPECIFICATIONS
    CFM 550 CFM
    Voltage 115VAC
    Power Consumption 33 Watts
    SPL @ 3' 55dB
    Diameter 10" (254mm)
    Height 3.5" (88.9mm)
    Power Cord 6 ft

    SUPPORT FILES

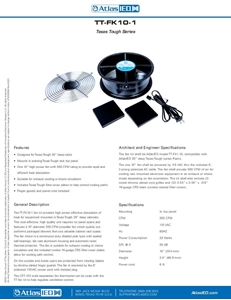

    TT-FK10-1 (12 pages)

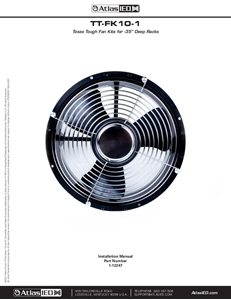

    TT-FK10-1 (1 page)
