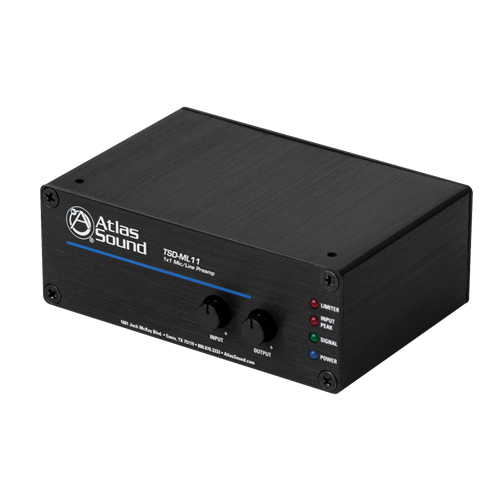

1 x 1 Mic/Line Preamp

Availability: In stock
Your Price:
  • Power Supply Sold Separately
  • CE

    The TSD-ML11 high headroom, low noise mic preamp is perfect for use as a standalone preamp or in conference room systems, board meetings, courtrooms, council chambers, and public forum systems that need mute and push to talk microphone functions.

    Unit features switchable phantom power for powering condenser microphones and has four EQ cut filters centered at common frequencies to eliminate feedback and control voice shaping. The variable mic preamp helps further eliminate noise for quiet operation as well as reduces unwanted coloration and changes in tonality and a 12dB @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system and ensure focus and clarity stays on voice sound spectrum. An output limiter/compressor is also included for system protection to avoid clipping and eliminate distortion. Mic Mute and Mic On control allows microphones in the system to be push-to-talk enabled or muted for speaker priority.

    Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.  This unit has a power requirement of 100mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

    • High Quality Microphone Preamp with Switchable 24V Phantom Power

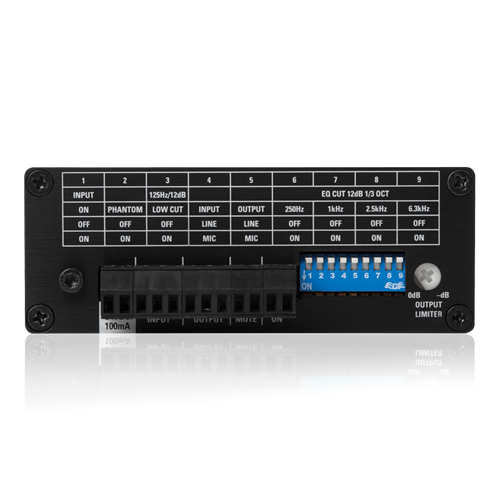

    • Mic/Line I/O via Removable Phoenix Style Connector
    • Four (4) Preset Frequency Notch Filters For Tone and Feedback Control
    • 125Hz /12dB Low Cut Filter
    • Variable Output Limiter/Compressor
    • Mic Mute/Mic On Via Contact Closure

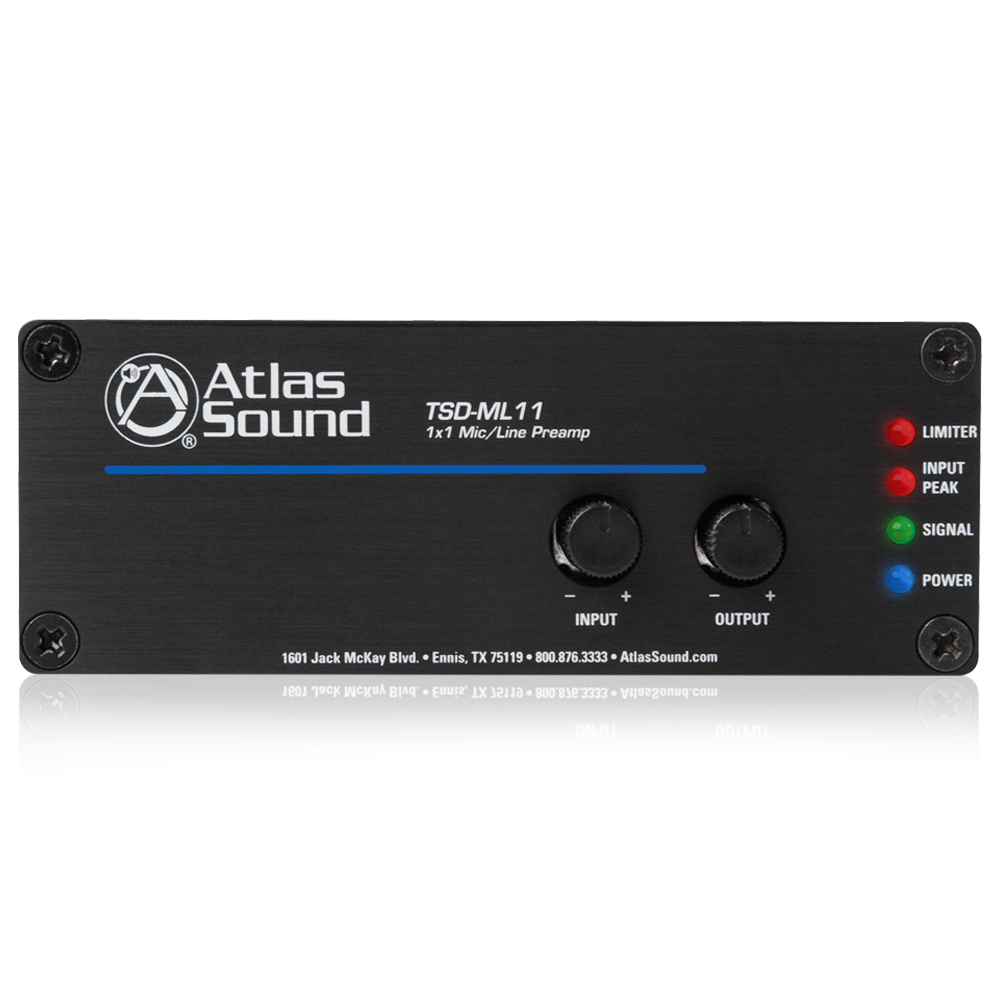

    • Input Signal & Peak Indicators
    • High Gain Output for Long Distance Signal Transmission
    • Separate Ground Connections
    • Security Covers Included for All Front Panel Controls
    • Energy Efficient
    • Power Supply Sold Separately

    Input impedance 1.2KΩ Balanced, 600Ω Unbalanced
    THD .06% & 1kHz
    Phantom Power 24VDC Defeatable
    Line Input Level 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
    Mic Input Level 46dB Gain 10mV (-40dBV) Balanced
    Output impedance 300Ω Balanced, 150Ω Unbalanced
    Line Output Level 1V (0dBV) In
    Mic Output Level 10mV (-40dBV) In
    Frequency Response 20Hz - 20kHz
    Signal to Noise Ratio Line to Line 85dBV
    Signal to Noise Ratio Mic to Line 70dBV
    24VDC Power Requirements 100mA
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 2.5" (6.35 cm)
    Weight 6oz., .165kg
    Voltage Compatibility 24V
    Warranty Period 36 months from date of purchase
