3x2 Stereo Line Mixer with Remote Level

TSD-MIX32RL
Availability: In stock
Your price (USD): $272.99
  • Power Supply Sold Separately
  • CE
    DESCRIPTION

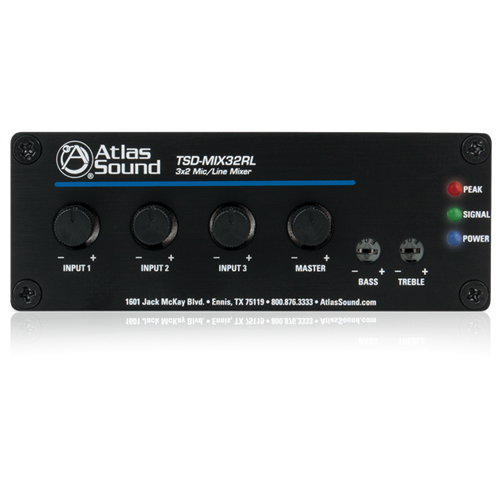

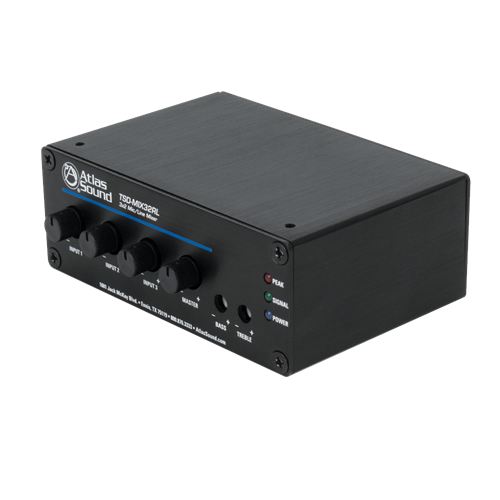

    The AtlasIED TSD-MIX32RL is a 3x2 stereo line mixer with Remote level control. It is ideal for applications where multiple stereo line sources need to be combined into a preamp utilizing the local or remote Master level control. The unit can be easily interfaced with AtlasIED amplifiers. Applications include restaurants, conference rooms, and schools.

    Additional on board EQ can be done utilizing the Base control (100Hz ±6db) and Treble control (10kHz ±6dB). The TSD-MIX32RL uses high quality, low noise components to ensure clarity and quiet operation without unwanted coloration.

    The TSD-MIX32RL is highly efficient and meets most energy standards as one 24VDC power supply (available separately) can power multiple Atlas Time Saving Devices. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.  This unit has a power requirement of 60mA so any of the available power supplies can be used with this unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.


    FEATURES

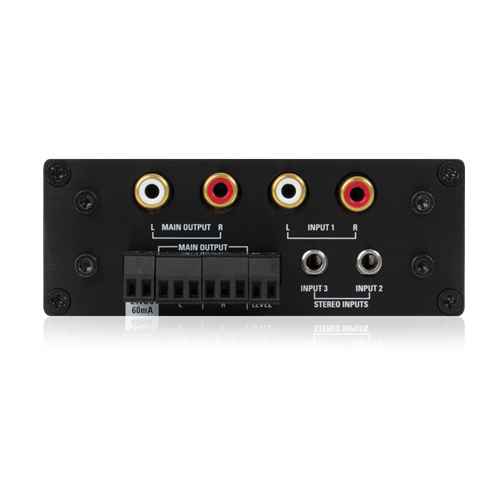

    • Three Stereo Unbalanced Line Inputs, One Set of RCA and Two 3.5mm
    • Balanced Line Outputs Left & Right
    • Unbalanced Line Outputs Left & Right
    • Base & Treble Controls ±6dB
    • Remote Master Level Control
    • High Gain Output for Driving Long Balanced Lines
    • Input Signal Indicator LEDs, Qty 3
    • Output Peak & Signal Indicator LEDs
    • Separate Ground Connections

    SPECIFICATIONS
    Unbalanced Line Input 300mV (-10dB)
    Maximum Input Signal 1.5V (3dBV)
    THD .06% @ 1kHz
    Signal to Noise Ratio Line to Line: 85dBV
    Balanced Output Impedance 300Ω
    Unbalanced Output Impedance 150Ω
    Power Consumption 60mA
    Power Consumption 1.4W
    Maximum Output Balanced/Unbalanced 5V (14dBV)
    Frequency Response 20Hz - 20kHz (±1dB)
    Voltage 24VDC, 60mA
    Height 1.5" (39mm)
    Width 4" (101mm)
    Depth 2.75" (70mm)
    Voltage Compatibility 24V

    SUPPORT FILES
    Owners Manual

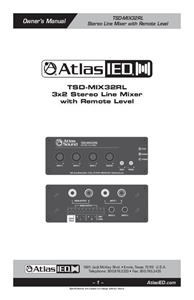

    ATS004401B TSD-MIX32RL Owners Manual
    Data Sheet

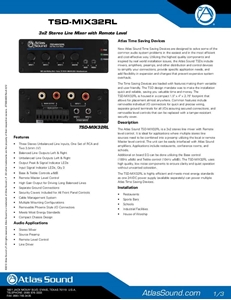

    ATS004400 TSD-MIX32RL Data Sheet
    CAD Drawing
    Panel drawings for all TSDs
