8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer with T62-8 Torsion Baffle

Name: 8" In-Ceiling 4W Speaker with Transformer and Baffle
Brand: AtlasIED
SKU: TFD72WC
Rating: 5 (5 reviews)

TFD72WC

Availability: In stock

Your Price:

$70.99

DESCRIPTION

The TFD72WC is a cost-effective 8" dual-cone speaker assembly which delivers wide frequency response for general purpose voice and music reproduction.

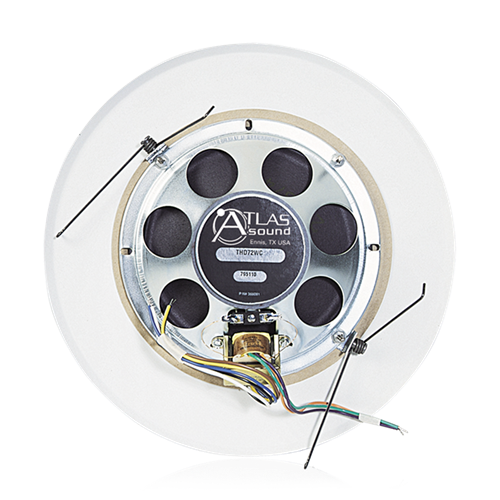

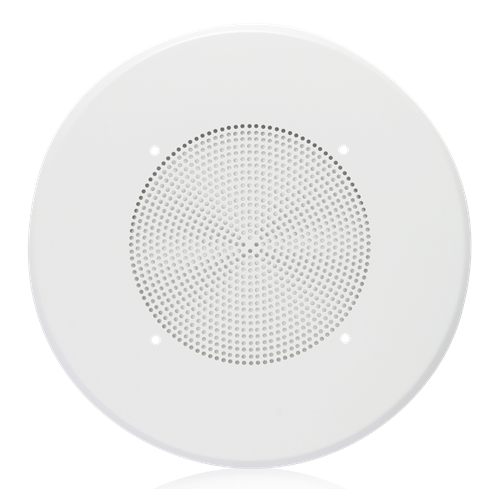

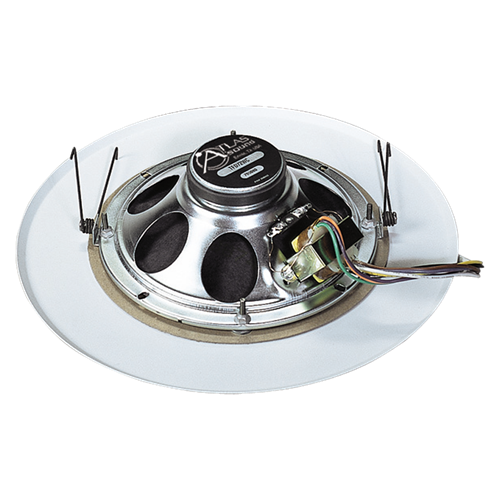

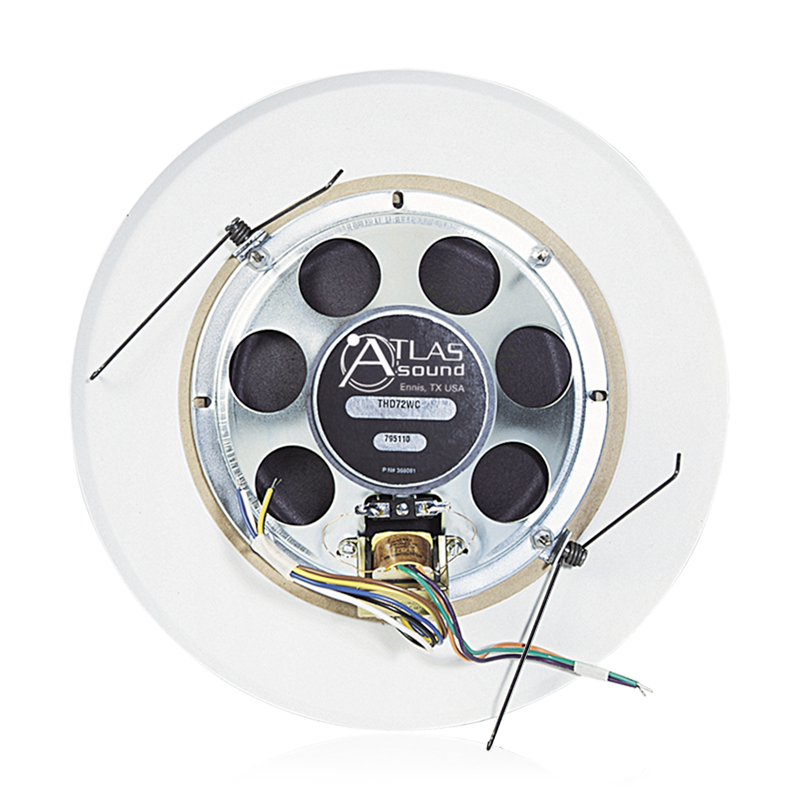

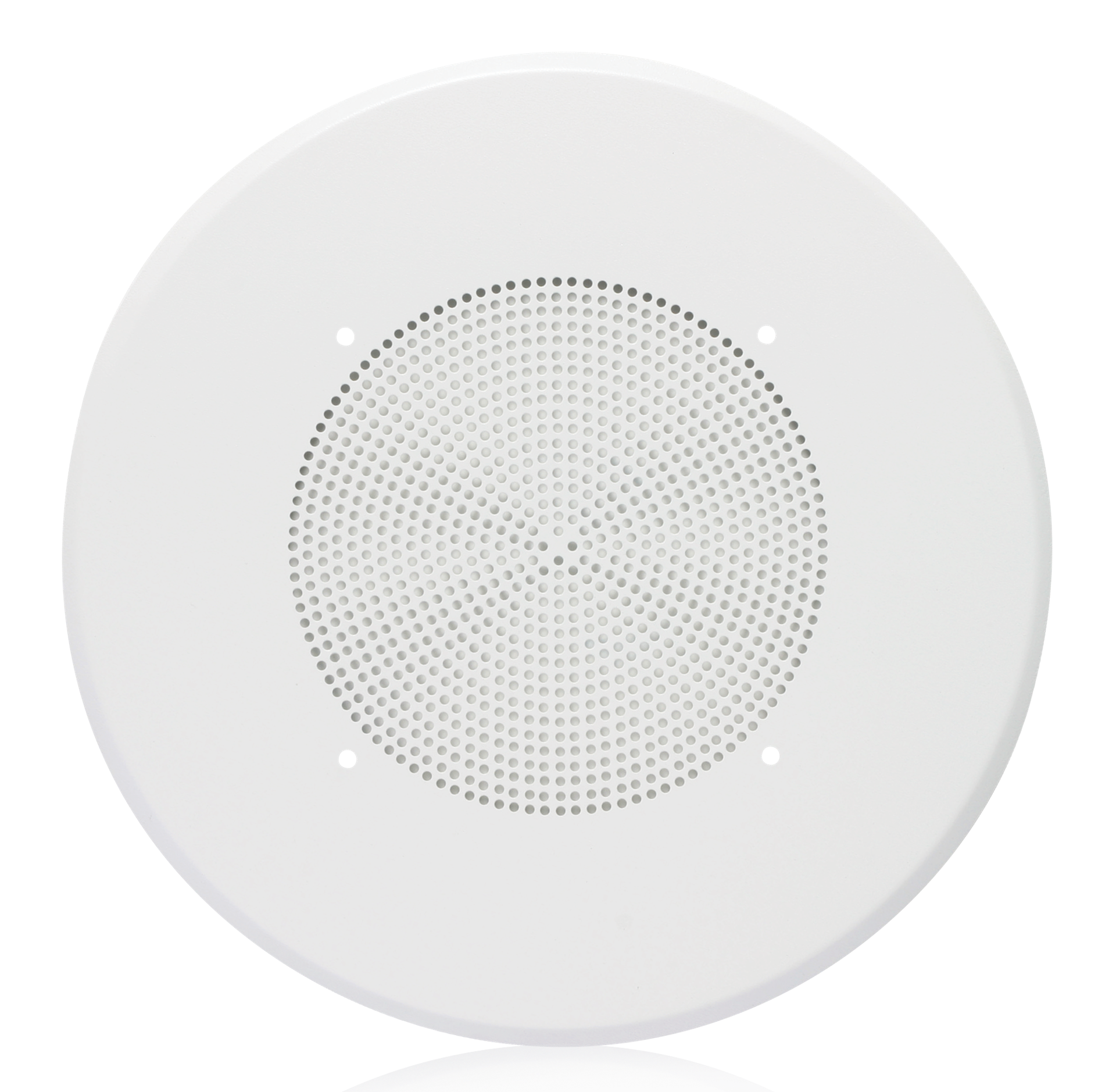

Unit is shipped complete with torsion mount grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense.

The TFD72WC will accept optional protective enclosures and mounting accessories to meet installation and code requirements.

Features

Attractive White Finish
Easy to Order Speaker/Transformer/Torsion Grill Assembly
Suited for Any Commercial Paging or BGM Application

SPECIFICATIONS

Frequency Response	100Hz - 10kHz
Sensitivity	96dB Peak, 93dB Average
Power Taps	.25, .5, 1, 2, & 4 Watts
Speaker Type	Treated Paper
Dispersion	105°
Depth	2 5/8" (6.6675 cm)
Diameter	8" (20.32 cm)
Shipping Weight	4.00 lbs (1.81 kgs)
Warranty Period	60 months from date of purchase

SUPPORT FILES

FD/EZFD & HD/EZHD Series Datasheet (2 pages)

View | Download
