TitanONE Amp Card 70.7-Volt, Dual Channel 300-Watt

T302-120V-T1
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $1,021.99
  • TitanONE Required
  • Class D Efficiency
  • 70V Operation Only
  • Made in USA
  • Fault Reporting
    DESCRIPTION

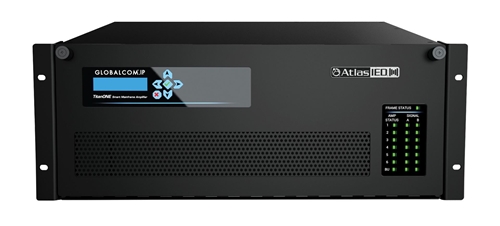

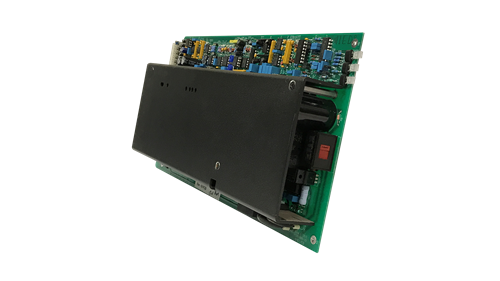

    The T302-120V-T1 is a class D, dual channel, 300W total, 70V power amplifier card used in the TitanONE T112 Smart Amplified Mainframe System. Any card may be placed in any slot in the mainframe without requiring any configuration settings to be made on the amplifier cards. This card is designed for use in 110V ~ 120V AC electrical countries.

    Class D operation combined with an integral switch-mode power supply offers many advantages, and the unique IED design makes full use of these benefits. They include:

    • Higher Efficiency
    • Increased Reliability
    • Improved Performance
    • Lower Operating Cost

    Switch-mode operation combined with high voltage power MOSFET devices make it possible to eliminate the heavy, costly, bulky transformers. The card contains no onboard attenuation controls. Attenuation is handled ahead of the power amplifier by the mainframe central processor. The power amplifier has built-in voltage limiting to protect the speakers. In addition, a temperature sensor on the heatsink will automatically shut down an amplifier that becomes too hot to protect the electronics. When used with the TitanONE T112, the amplifier status signals are monitored by the main control processor. Any failures are detected and reported to the IED supervision system to alert the user that service is required.

    The amplifier card has LED indicators located on its front edge. A single green LED will illuminate to indicate that the amplifier is powered on. Each channel on the card also has a multi-color signal LED. It will illuminate green when input signal is present on the channel. This LED changes to yellow to indicate that the channel is clipping. A power switch is provided on the front of each card. It is recessed and requires a tool to operate in order to prevent any accidental switch operation. The switch allows an individual card to be powered down and removed or replaced without affecting any other cards installed in the same mainframe. Each card provides +24VDC through current limiting resistors to operate of the fans in the rear of the mainframe.



    SPECIFICATIONS
    Amplifier Topology Class D
    Power Output 300W Total, 2CH x 150W at 70.7V
    Signal to Noise Ratio >85dB
    Operating Temperature Range +32 - +104 (0c - +40c)
    Frequency Response 20Hz - 20kHz, 25% Rated Power
    Total Harmonic Distortion <0.2% @ 2kHz
    Input impedance 20kΩ, Balanced
    Height 6.8" (173mm)
    Width 1.8" (46mm)
    Depth 12.5" (317.5mm)
    Weight 4.0 lbs. (1.8kg)

    SUPPORT FILES
    Data Sheet
    TitanONE_Amp_Cards_Data_Sheets
