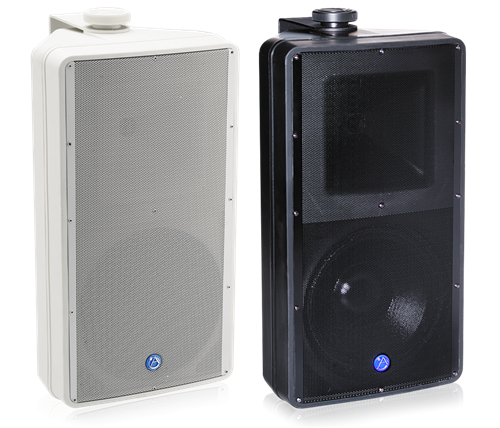

EN54-24 Certified 8" 2-Way All Weather Speaker with 60-Watt 70V/100V Transformer in Black or White

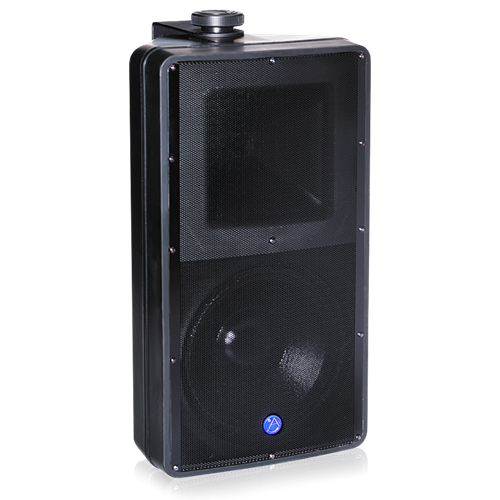

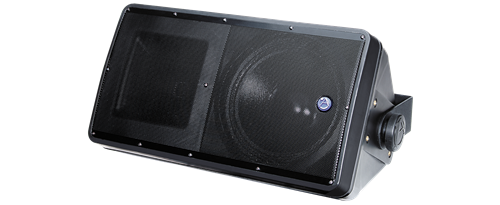

SM82T-B front view 1_4
EN54-24 Certified 8" 2-Way All Weather Speaker with 60-Watt 70V/100V Transformer (Black)
SKU: SM82TEN-B
Availability: In stock
Your Price:
$449.99

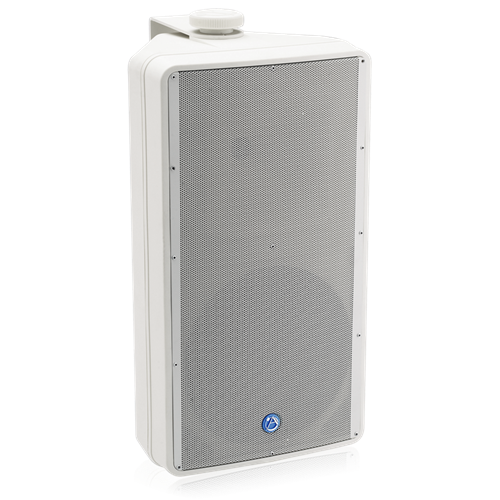

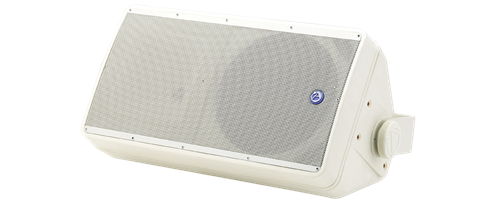

SM82T-WH front view 1_4
EN54-24 Certified 8" 2-Way All Weather Speaker with 60-Watt 70V/100V Transformer (White)
SKU: SM82TEN-WH
Availability: In stock
Your Price:
$449.99
  • EN54-24 Certified
  • 4OHM8OHMCAPABLE
  • IP33C Rated
  • 65°H x 65°V Coverage
  • Non-Powered
  • 70V100VCAPABLE
    DESCRIPTION

    Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, titanium dome high frequency device. Vocal and musical clarity are optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound coverage (65oH x 65oV). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. The AtlasIED PolyGuard™ protection circuit provides high frequency component protection. To withstand the harshest environments, the Strategy Series SM82TEN surface mount loudspeakers are constructed of weather resistant materials: UV-resistant, talc impregnated, polypropylene injection molded cabinets; HYCONE treated paper woofer cones; powder coated aluminum grilles and all brass hardware. The Strategy Series speaker systems include a versatile, yet simple, C-bracket designed to provide easy vertical or horizontal installation on just about any surface. A 15mm (.59") hole is provided on the C-bracket to allow the SM82T speaker to be mounted on any AtlasIED microphone stand for nearfield live sound applications. Four 4 1/4" x 2" (108mm x 51mm) OC brass inserts are also provided on the rear of the SM82TEN-B and SM82TEN-WH to accommodate OMNIMOUNT™ 30 series brackets. (OMNIMOUNT 30.0 WB recommended for wall mounting.

    All inserts for mounting knobs are standard 1/4"–20 to allow easy substitution of off-the-shelf vandal-proof torx head or “one-way hardware.Input connectors include a two-pole barrier strip with wire capture “caps” capable of accepting up to two #16AWG cables. 1.9, 3.7, 7.5,15, 30 and 60 Watt taps, plus a transformer bypass setting for direct coupled 8Ω operation are screwdriver selectable via a sealed switch located near the input section on the rear of the cabinet. A tongue-in-groove cover with rubber wire exit grommet is provided to protect the input connections and transformer switch assembly from moisture. Systems are available in black or white and may be painted to accommodate any architectural considerations.


    Features
    • 1" Exit Titanium High Frequency Compression Driver
    • UL1480A Listed
    • All ¼"-20 Hardware Inserts Allow Easy Integration of "Off-the-Shelf" Security Hardware
    • Atlas Sound TRX WAVEGUIDE™- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
    • Compact, 2-way Loudspeaker Systems for Exceptional Performance in Music and Sound Reinforcement Systems
    • Conforms to 100HR Salt Spray Test per ASTM B117
    • Highly Efficient 8" HYCONET Treated Woofer
    • POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
    • Screwdriver Adjustable 60 Watt 70.7V/100V Transformer for Distributed Sound Application.
    • Weather-Resistant Construction For Year-round Indoor Use, (Not EN54-24 certified for outdoor use), UV-resistant PC / ABS, Injection Molded, Weatherproof Enclosure, Powder Coated Aluminum Grilles and all Brass Hardware Inserts
    • OMNIMOUNT™ Compatible
    • EC UK Certificate of constancy of performance to EN54-24
    • UK UK Certificate of constancy of performance to EN54-24

    SPECIFICATIONS
    Speaker Type Surface Mount
    Power Taps 1.9, 3.8, 7.5, 15, 30, 60 & 8Ω bypass
    Sensitivity 92dB
    Sensitivity (EN54-24) 72db
    Frequency Response 65Hz - 20kHz
    Height 16 1/2" (41.9 cm)
    Width 9 1/16" (23.0 cm)
    Depth 8 7/16 (21.4 cm)
    Shipping Weight 20.00 lbs (9.07 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

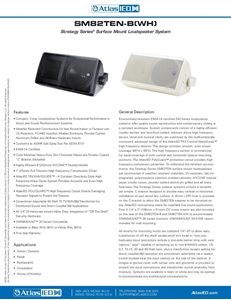

    SM82TEN-B Datasheet (4 pages) SM82TEN-B Datasheet (4 pages)
    SM82TEN CAD Drawing (pdf) (1 page) SM82TEN CAD Drawing (pdf) (1 page)
    SM82TEN CAD Drawing SM82TEN CAD Drawing
    SM82TEN-B Revit Drawing SM82TEN-B Revit Drawing
    SM82TEN CLF Data SM82TEN CLF Data
    SM82T EASE DATA SM82T EASE DATA
    Declaration of Performance (DoP) _3005-EN54-24 UK & CE for SMxxTEN (4 pages) Declaration of Performance (DoP) _3005-EN54-24 UK & CE for SMxxTEN (4 pages)
    SM82T EASE DATA SM82T EASE DATA
