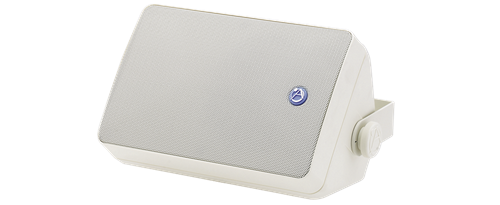

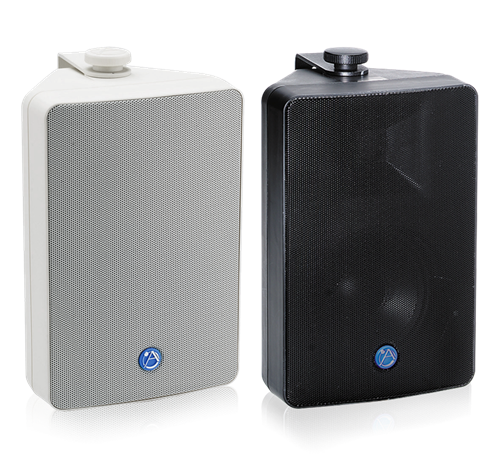

EN54-24 Certified 5.25" 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer in Black or White

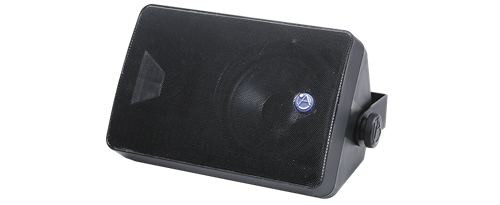

SM52T-B front view 1_4

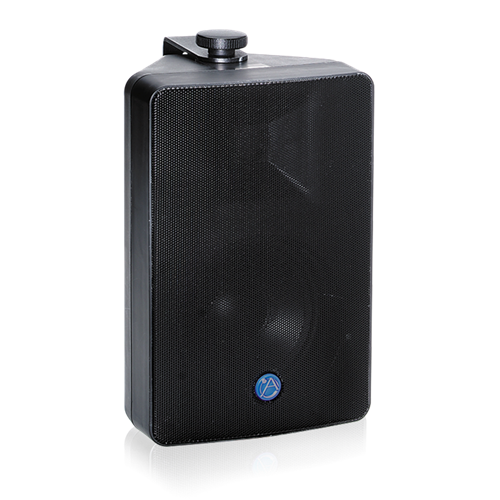

EN54-24 Certified 5.25" 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer (Black)
SKU: SM52TEN-B
Availability: In stock
Your Price:
$282.99/each
Must purchase in multiples of 2
SM52T-WH front view 1_4

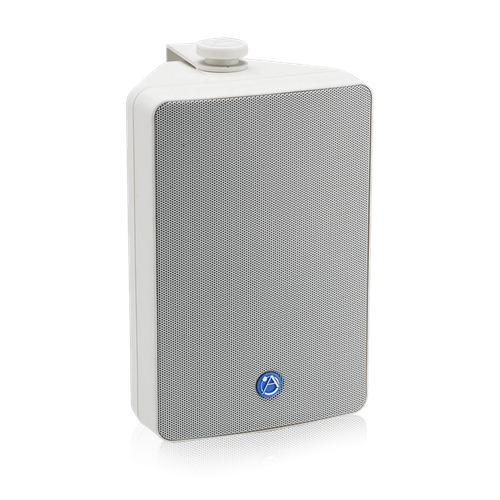

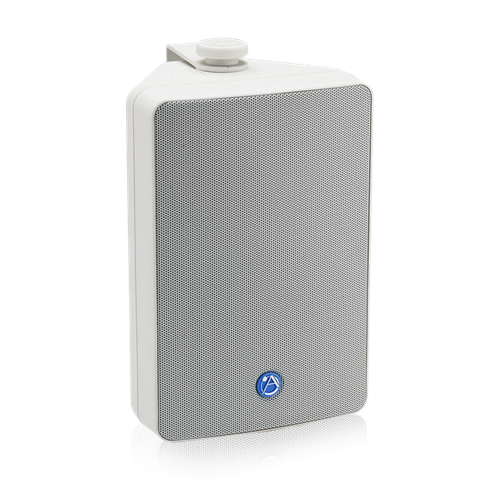

EN54-24 Certified 5.25" 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer (White)
SKU: SM52TEN-WH
Availability: In stock
Your Price:
$282.99/each
Must purchase in multiples of 2
  • EN54-24 Certified
  • 4OHM8OHMCAPABLE
  • IP33C Rated
  • 90°H x 90°V Coverage
  • Non-Powered
  • 70V100VCAPABLE
    DESCRIPTION

    Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound coverage (90o H x 90oV). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard™ protection circuit. The SM52TEN includes an internally mounted 60 Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 6Ω operation.


    Features
    • 1" Ferrofluid™ Cooled Dome Tweeter
    • 100HR Salt Spray Test Per ASTM B117
    • All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
    • Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
    • Atlas Sound TRX WAVEGUIDE™- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
    • Available in Black or White
    • Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
    • Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
    • Five-Year Warranty
    • Weather-Resistant Construction For Year-round Indoor Use, (Not EN54-24 certified for outdoor use), UV-resistant PC / ABS, Injection Molded, Weatherproof Enclosure, Powder Coated Aluminum Grilles and all Brass Hardware Inserts
    • EC UK Certificate of constancy of performance to EN54-24
    • UK UK Certificate of constancy of performance to EN54-24
    • OMNIMOUNT™ Compatible

    SPECIFICATIONS
    Speaker Type Surface Mount
    Power Taps .94, 1.9, 3.7, 7.5, 15, 30 & 6Ω Bypass
    Sensitivity 90dB
    Sensitivity (EN54-24) 69dB
    Frequency Response 93Hz - 20kHz
    Height 10 3/16" (28.5 cm)
    Depth 5 7/8" (14.8 cm)
    Width 6 7/8" (17.46 cm)
    Shipping Weight 8.50 lbs (3.86 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

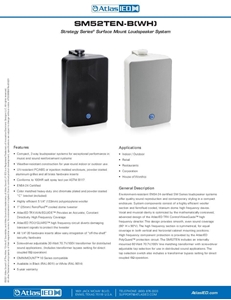

    SM52TEN Datasheet (4 pages) SM52TEN Datasheet (4 pages)
    SM52TEN CAD Drawing (pdf) (1 page) SM52TEN CAD Drawing (pdf) (1 page)
    SM52TEN CAD Drawing SM52TEN CAD Drawing
    SM52T EASE DATA SM52T EASE DATA
    SM52TEN-B Revit Drawing SM52TEN-B Revit Drawing
    SM52TEN CLF Data SM52TEN CLF Data
    SM52T EASE DATA SM52T EASE DATA
    Declaration of Performance (DoP) _3005-EN54-24 UK & CE for SMxxTEN (4 pages) Declaration of Performance (DoP) _3005-EN54-24 UK & CE for SMxxTEN (4 pages)
    RECOMMENDED

    SM52 C-Bracket-Black

    SM52CBRKT-B

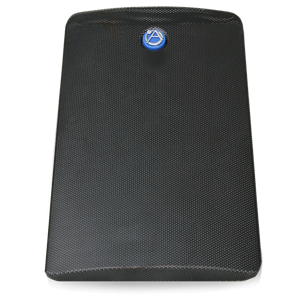

    SM52 Grill W/Logo-Black

    SM52GRILL-B
    Availability: In stock
    Your Price:
    $29.99

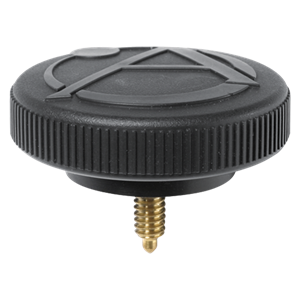

    SM42/SM52 Black Replacement Knobs (Pair)
