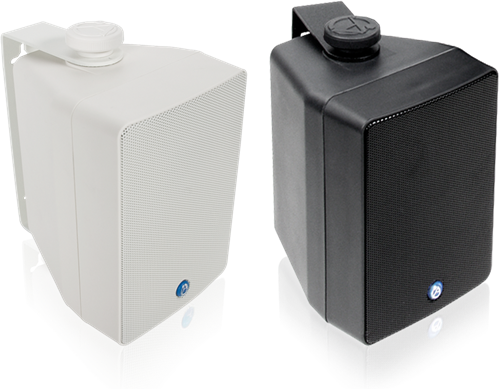

EN54-24 Certified 4" 2-Way All Weather Speaker with 16-Watt 70V/100V Transformer in Black or White

SM42T-B 3_4 front view

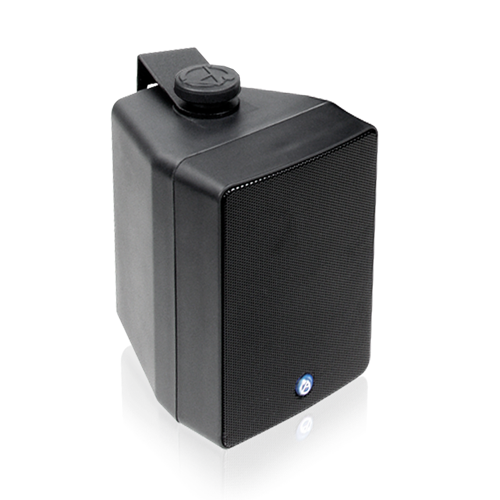

EN54-24 Certified 4" 2-Way All Weather Speaker with 16-Watt 70V/100V Transformer (Black)
SKU: SM42TEN-B
Availability: In stock
MSRP (USD): $153.99/each
Must purchase in multiples of 2
SM42T-WH front view 3_4

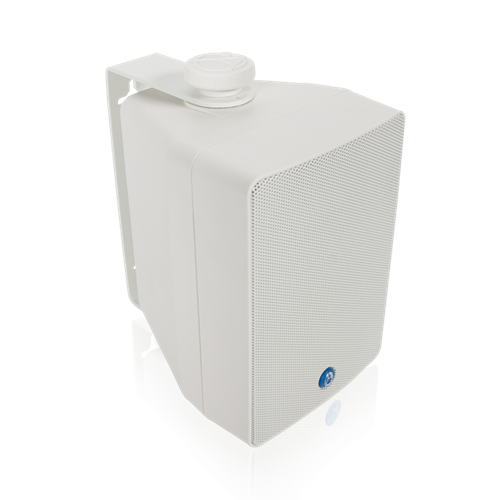

EN54-24 Certified 4" 2-Way All Weather Speaker with 16-Watt 70V/100V Transformer (White)
SKU: SM42TEN-WH
Availability: In stock
MSRP (USD): $153.99/each
Must purchase in multiples of 2
  • EN54-24 Certified
  • 4OHM8OHMCAPABLE
  • IP21C Rated
  • 90°H x 90°V Coverage
  • Non-Powered
  • 70V100VCAPABLE
  • Optional Ball Mount Sold Separately
    DESCRIPTION

    Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled mylar high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound coverage (90° x 90°). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED Poly Guard™ protection circuit. Both drivers feature low-flux-leakage designs enabling the speaker to be used in close proximity to video monitors. For critical video monitoring applications, a minimum distance of 18" from the edge of the loudspeaker to the edge of the screen is recommended. The SM42TEN-B and SM42TEN-WH includes an internally mounted 16 Watt 70.7V/100V line matching transformer with screwdriver adjustable external tap selection for use in distributed sound applications.

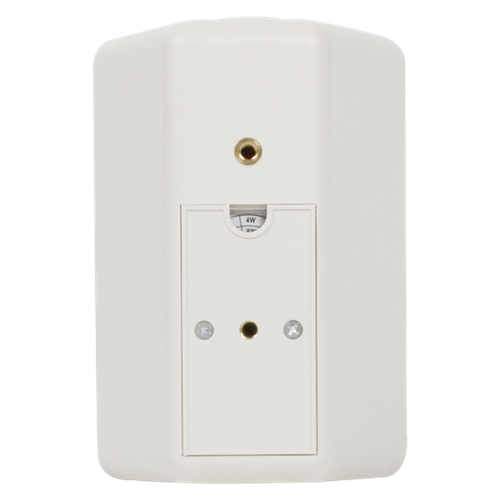

    To withstand the harshest environments, the new Strategy Series® SM42TEN-B and SM42TEN-WH surface mount loudspeakers are constructed of weather resistant materials: UVresistant, Polycarbonate/acrylonitrile butadiene styrene injection molded cabinets; polypropylene woofer cones; powder coated aluminum grilles and all brass hardware. The Strategy Series speaker systems include a versatile yet simple C-bracket designed to provide easy vertical or horizontal installation on just about any surface. Care should be taken to ensure that the chosen mounting surface is strong enough to support the SM42TEN-B and SM42TENWH. Care should also be taken to ensure that the SM42TEN-B and SM42TEN-WH is not exposed to direct precipitation. A 15mm (.59") threaded hole is provided on the C-bracket to allow the SM series speaker to be mounted on any AtlasIED microphone stand for near-field live sound applications. 2-3/8" OC brass 1/4" inserts are also provided on the rear of the SM42TEN-B and SM42TENWH to accommodate the AtlasIED SMBALLMOUNT bracket or OMNIMOUNT™ 10 Series brackets. All inserts for mounting knobs are standard 1/4"-20 to allow easy substitution of standard “off the shelf" vandal proof torx head or “one-way" hardware. Input connectors include a sealed 2-pole terminal strip capable of accepting up to two #16AWG wires. 2, 4, 8 and 16 Watt taps are screwdriver selectable via a sealed switch located near the input section on the rear of the cabinet. Internal transformer may also be bypassed for 8Ω operation via tap selector switch. A flush cover with wire exit hole is provided to ensure input connections and tap selector switch are protected. Systems are available in Black or White finishes and can be painted to accommodate any architectural considerations.


    FEATURES
    • 1" Ferrofluid™ Cooled Dome Tweeter & Highly Efficient 4" Polypropylene Woofer
    • All 1/4"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
    • Atlas Sound POLYGUARD™ High Frequency Protection Circuit
    • Available in Black or White
    • Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
    • Five-Year Warranty

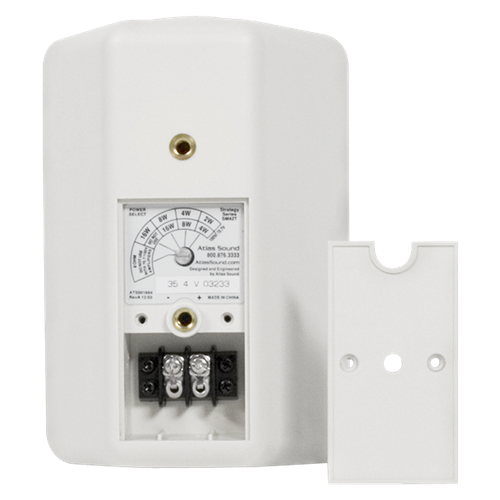

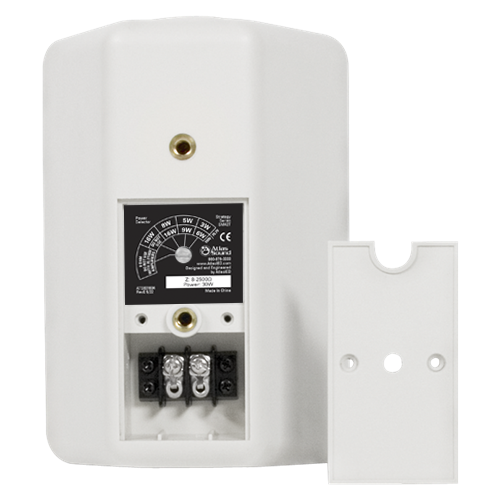

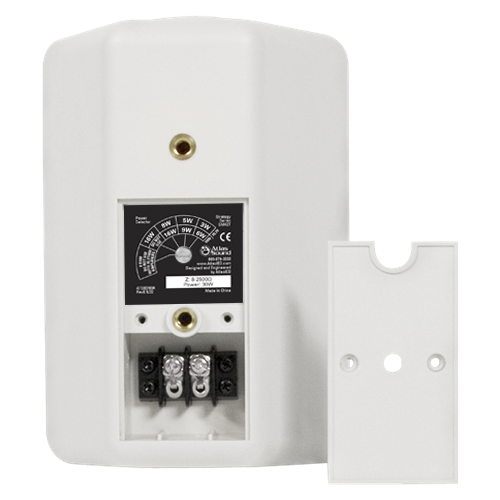

    • Screwdriver Adjustable 16-Watt 70.7V/100V Transformer (may be bypassed for 8-ohm operation)
    • TRX WAVEGUIDE™- Constant Directivity Style High Frequency Wave Guide System
    • Weather-Resistant Construction For Year-round Indoor Use, (Not EN54-24 certified for outdoor use), UV-resistant PC / ABS, Injection Molded, Weatherproof Enclosure, Powder Coated Aluminum Grilles and all Brass Hardware Inserts
    • OMNIMOUNT™ Compatible
    • EC UK Certificate of constancy of performance to EN54-24
    • UK UK Certificate of constancy of performance to EN54-24

    SPECIFICATIONS
    Speaker Type Surface Mount
    Power Taps 2, 4, 8, & 16-Watt and 8Ω Bypass
    Sensitivity 88dB
    Sensitivity (EN54-24) 67dB
    Frequency Response 115Hz - 16kHz
    Height 7" (17.78 cm)
    Width 5" (12.7 cm)
    Depth 5 15/16" (15.03 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)

    SUPPORT FILES

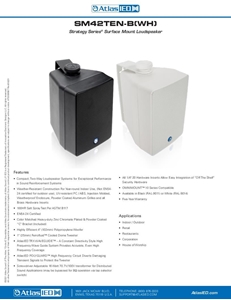

    SM42TEN Datasheet (5 pages)
    SM42TEN CAD Drawing
    SM42TEN CAD Drawing (pdf) (1 page)
    SM42T EASE DATA
    SM42T EASE DATA
    SM42TEN-B Revit Drawing
    SM42TEN CLF Data
    Declaration of Performance (DoP) _3006-EN54-24 UK & CE for SM42TEN (4 pages)
    RECOMMENDED

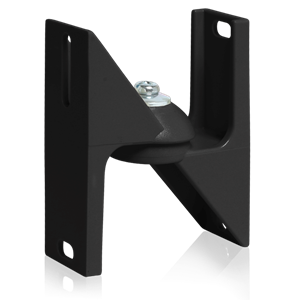

    Optional Ball Bracket for SM42 (Black)
