12" 2-Way Compression Driver Coaxial Surface Mount Loudspeaker with 60-Watt 70V Transformer - White

SM12CXT-W
Availability: In stock
Your price (USD): $714.99
  • Mount Sold Separately
  • 90°H x 90°V Coverage
  • Non-Powered
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE

    SM Series loudspeakers offer quality sound reproduction and contemporary styling. The SM12CXT-W features the 12CXT60—a 250 watt loudspeaker that combines a 12" diameter, low frequency transducer and a 1" exit, compression driver.

    The loudspeaker has a curvlilinear, treated-paper cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. The low frequency transducer and the high frequency driver feature permanently aligned voice coils for low distortion performance. The copper coils have Polyimide voice coil formers.

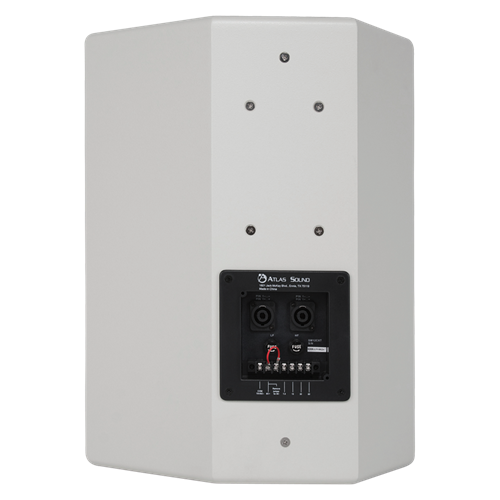

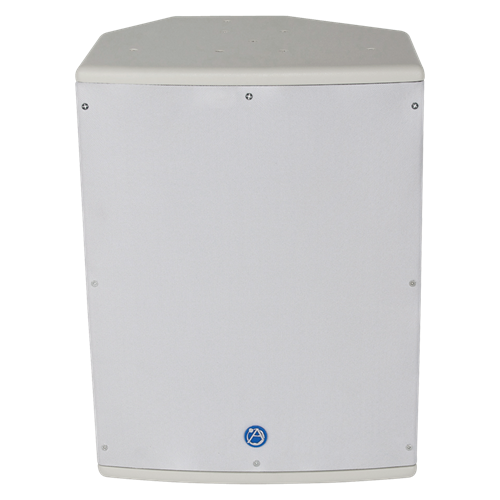

    The SM12CXT-W features a wood enclosure with a metal grille. Internal hardware, for flying, includes multiple (12) 1/4"-20 inserts for overheard suspension in most any orientation.

    A 90 degree conical pattern (2 kHz octave band) and amazing efficiency make the SM12CXT-W a perfect choice for a wide variety of applications including school auditoriums, gymnasiums, cafeterias, church sanctuary systems, and more.

    FEATURES

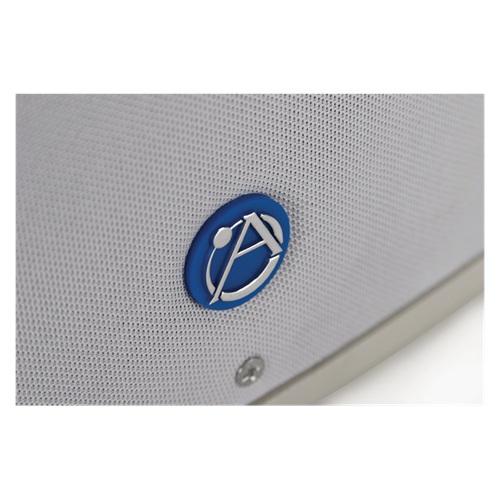

    Attractive, Heavy-Duty Grille Assembly

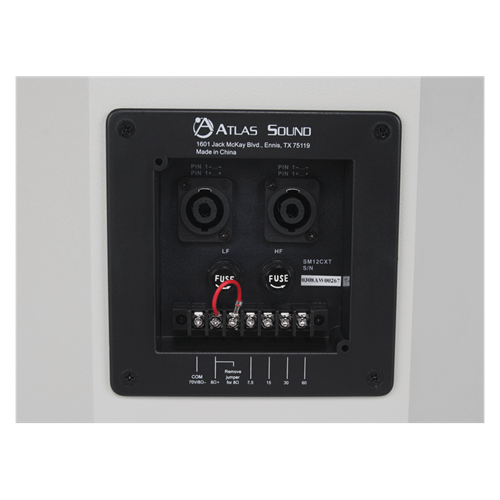

    Barrier Strip Input for 70.7/100V/8 Ohm or Parallel 4 Pole Speak-ON™ Input for 8 Ohm Operation Only
    Durable Rough-Coat Finish
    Fuse Protection for Low and High Frequency Drivers
    High Performance Atlas Sound Compression Driver Coaxial Loudspeakers in Versatile, Flyable, Wood Enclosure
    Includes Internal, High Efficiency 60 Watt 70.7/100V Transformer (May Be Bypassed for 8 Ohm Operation)
    Multiple (12) 1/4"-20 Inserts, Providing Fly Points for a Variety of Mounting Configurations
    Optional Brackets for Wall Mounting
    Unique Input Panel Allows Use of Standard 4" Square Box Cover (Raco 753 or eq.) for Applications Where Flex Conduit is Required for Termination
    SPECIFICATIONS
    Speaker Type HIGH PERFORMANCE COAXIAL
    Sensitivity 99dB
    Frequency Response 55Hz - 15kHz
    Dispersion 90°
    Height 19" (48.3 cm)
    Width 14 1/2" (36.8 cm)
    Depth 14 1/16" (35.7 cm)
    Shipping Weight 52.00 lbs (23.59 kgs)
    SUPPORT FILES
    Data Sheet

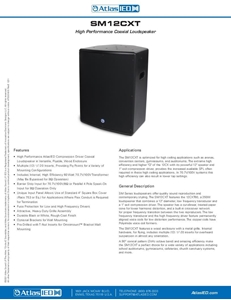

    ATS001815 SM12CXT Datasheet RevD (3 pages)
    Installation Sheet

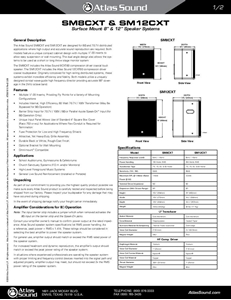

    SM8CXT/SM12CXT Installation Sheet (2 pages)
