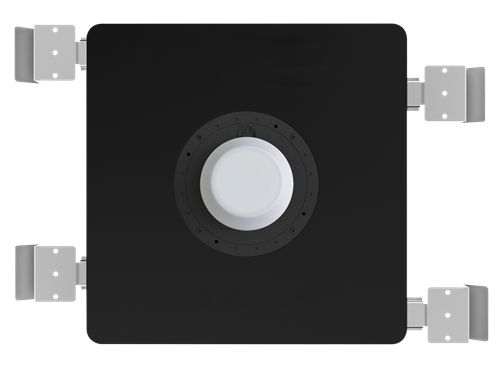

Strategically Hidden Speaker with included Clean Room Cover

SHS-6T2CVR

Availability: Call for Availability
Your Price:
$367.99
  • UL1480/2043
  • 70V / 100V Operation
  • Non-Powered
    DESCRIPTION

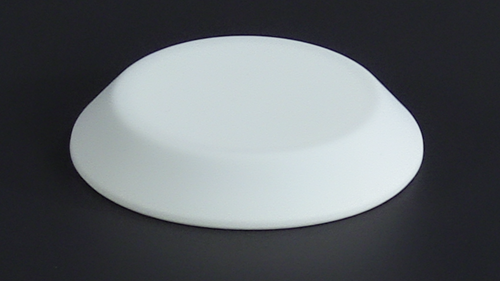

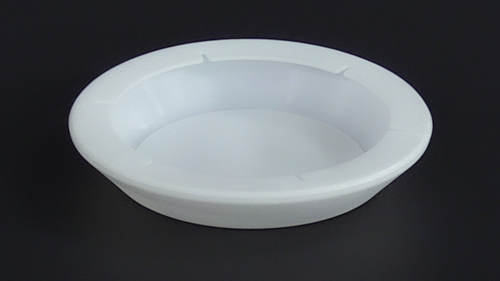

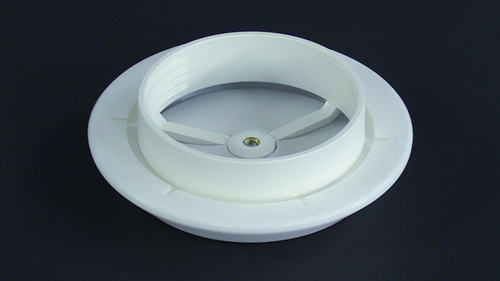

    The SHS-6T2CVR is an industry-first strategically hidden ceiling speaker designed specifically for areas where there is high sensitivity to clean air. The included SHS-CVR (cover) easily installs over the SHS opening to create a barrier between the building plenum and clean space. AtlasIED recommends using the SHS-6T2CVR kit when paging notifications are just as important as the air quality in an environment.

    Easy Installation

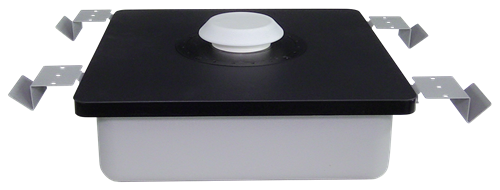

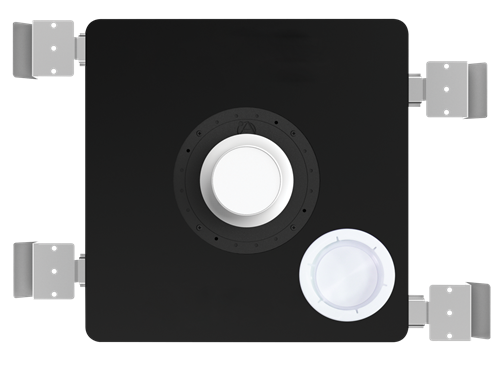

    Visually, only a 3-inch diameter lens and a micro trim ring are visible on the front of the ceiling. The SHS is an installer’s dream with an integrated rail system. All the installation parts are built into the enclosure including the tile rails, which require no rail screws for installation. Simply pull the four rails out from the enclosure and it’s ready for install, drill a three-inch hole in the ceiling tile, set the speaker through the hole and add the clean room cover.


    Features
    • Subtle Form & Design Blends Into Any Ceiling

    • Easy & Quick Installation

    • Speaker tuning optimized for speech transmission

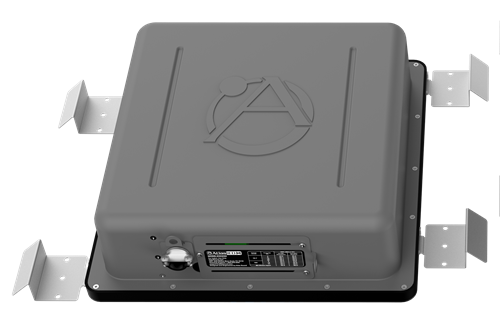

    • Self Contained Unit Includes Loudspeaker, Enclosure, and Adjustable Tile Rails

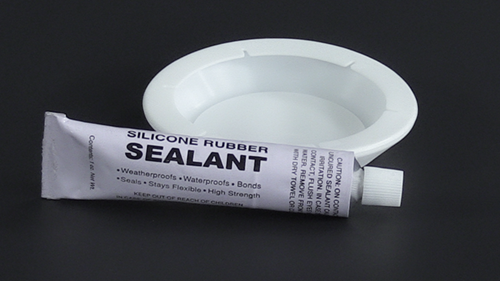

    • Includes durable rubber cover

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 86dB (1W/1m)
    Power Taps 4, 8, 16, 32-Watts (70.7V)
    Power Taps 8, 16, 32-Watts (100V)
    RMS Power (Watts) 75 @ 4Ω
    Frequency Response 100Hz - 15kHz (DSP Corrected)
    Dispersion 130°, 2kHz Octave Band with 4mm Dispersion Lens
    Cut Out Diameter 2.75" (69.85mm)
    Certified to Safety Listing UL1480 / UL2043
    Dimensions (HxWxD) 12.73" (323.3mm) x 12.73" (323.3mm) x 3.92" (99.6mm)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    SHS-6T2 CAD Drawing SHS-6T2 CAD Drawing
    SHS-6T2 Revit Drawing SHS-6T2 Revit Drawing

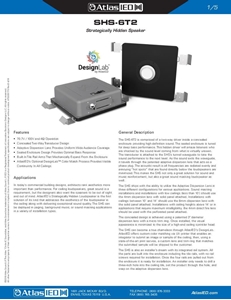

    SHS-6T2 Data Sheet (5 pages) SHS-6T2 Data Sheet (5 pages)

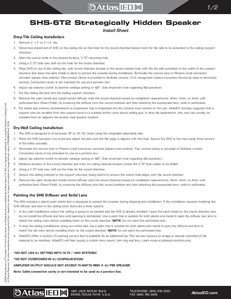

    SHS-6T2 Installation Sheet (2 pages) SHS-6T2 Installation Sheet (2 pages)
