8 inch Q Series 1 Cubic ft Cylindrical Enclosure with Undercoating

Q408
  • UL Listed
  • CUL
  • TAA
  • BAA

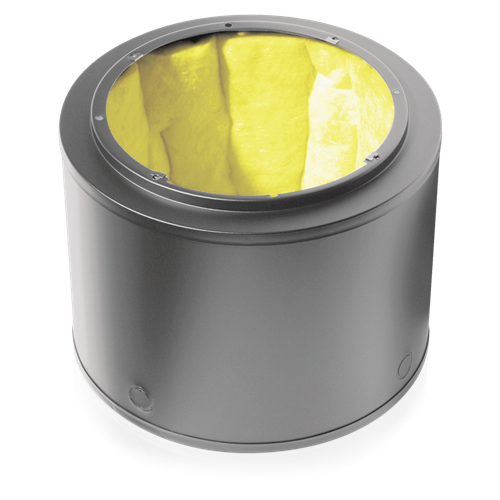

    Model Q408 is a welded steel protective enclosure having a volume of 1 cu. ft. (.028m3).

    The interior is undercoated to eliminate metallic resonance and is furnished with 1 1/2" (38mm) thick fiberglass with a 1 1/2 lb./cu. ft. density.

    The large volume of this enclosure improves the low frequency response of the system while the fiberglass controls undesirable resonances in the high end of the frequency spectrum.

    This cylindrical enclosure incorporates a plaster flange and has provisions for mounting a variety of architecturally pleasing AtlasIED grilles.

    Enclosure is designed for use with standard 8" (203mm) loudspeakers.

    Galvanized steel finish.

    Features
    1 Cubic Foot Capacity - Matches Well with 8CXT60 and FA138 Drivers
    High Performance Enclosure For 8" Loudspeakers
    Works Well with 81-8R Tile Bridge and 62-8 Baffle for Acoustic Tile Ceilings
    Galvanized Steel Finish
    Tech Specs
    Speaker Size 8
    Depth 10 1/2" (26.67 cm)
    Diameter 14 3/8" (36.51 cm)
    Shipping Weight 8.33 lbs (3.78 kgs)
    Mounts Baffle G22-8, 51-8, 60-8(W), VP60-R, 61-8W, 62-8, 63-8, 67-8(W), 68-8W, 170-8, EQ61, EQ164, M222(W), P900
    Safety Listed 1480
    Support Files

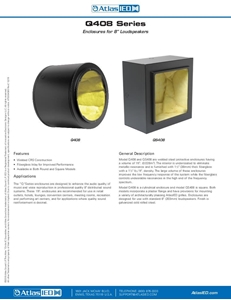

    Data Sheet Data Sheet (2 pages) View | Download
    CAD Drawing Q408 Download
