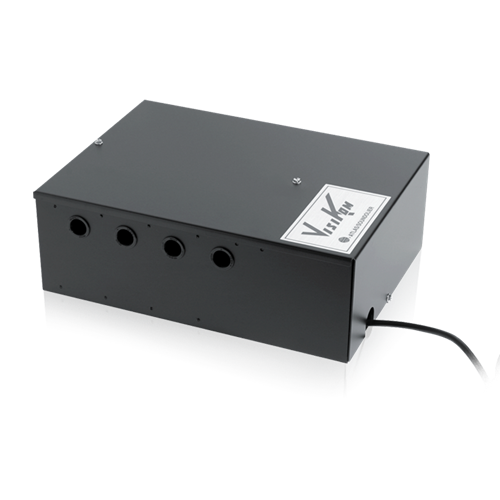

Viskom Telephone Visitation System Control Unit

PVP-24

    The Atlas PVP-24 telephone system provides common talk power for visitation telephones in correctional facilties, or anywhere multiple two station communication is needed. The PVP-24 houses the integral power supply and has slots to accomodate up to four PVP-6 plug in modules for up to 24 talk lines in use at any time.
    The PVP-24 provides clear, noise free communication in an expandible, low cost system. LEDS on the PVP-6 plug in cards provide staus of individual talk lines.

    Features
    Choose From a Selection of Telephone Styles and Accessories to Meet Functional Requirements
    Complete System Includes Built-In Power Supply and Crosstalk Filter Circuitry
    Conversational Privacy with Clear Audibility
    Expansion Convenience of Plug-in Interface Modules
    Up to 24 Independent and Simultaneous Conversations
    Tech Specs
    Height 13" (33.02 cm)
    Power Requirement 117 Vac
    Width 9 1/2" (24.13 cm)
    Depth 4 1/2" (11.43 cm)
    Shipping Weight 9.00 lbs (4.08 kgs)
    Capacity 4 Modules
    Output 8 Vac
    Support Files
    IN245691 (3 pages) View | Download
    CAD Drawing PVP-24 Download
