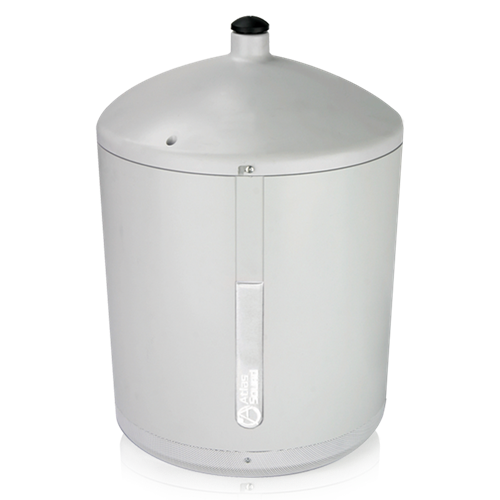

8" Pendent Mount Subwoofer with 60-Watt 70.7V Transformer - White

PM8SUB-WH
  • IPX3
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE

    The AtlasIED PM8SUB-WH matches the sonic quality of the high performance 8” Strategy II Series FAP8SUB driver. This loudspeaker is the same device used in AtlasIED’s successful model FAP8SUB in-ceiling subwoofer package. Mounted down-firing in an attractive enclosure, the PM8SUB provides natural sounding, wide coverage for low height installations while delivering excellent low frequency response for both music applications.

    Attaching a PM8SUB to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTECTM brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).

    FEATURES
    Integrated 70.7V Transformer with Power Taps at 7.5, 15, 30, & 60 Watts with 8Ω Bypass
    3 Meters of 2mm Cable & Mounting Hardware Included
    Compatible with Standard 3/4" Ceiling Fan Hardware
    Ideal Low Frequency Driver for High Ceiling Applications
    SPECIFICATIONS
    Frequency Response 46Hz - 160Hz
    Sensitivity 92dB Average
    Impedance 7.5, 15, 30, 60 Watts & 8Ω
    Speaker Type Subwoofer
    8Ω RMS Power 150 Watts
    Dispersion Omni
    Crossover Three Pole Design 18dB / octave @ 120Hz
    Enclosure Volume 1075 cu in
    Height 16 5/8" (42.2148 cm)
    Diameter 12 1/4" (31.115 cm)
    Shipping Weight 21.00 lbs (9.53 kgs)
    SUPPORT FILES

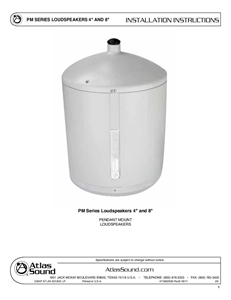

    Installation Sheet Installation Sheet (12 pages) View | Download
    Installation Sheet ATS004369_PM_Series_Install_Sheet (7 pages) View | Download
    Revit Drawing PM8 Series Revit Family Download
    Revit Drawing PM8SUB-WH Revit Drawing Download
    CAD Drawing PM8 Series CAD File Download
