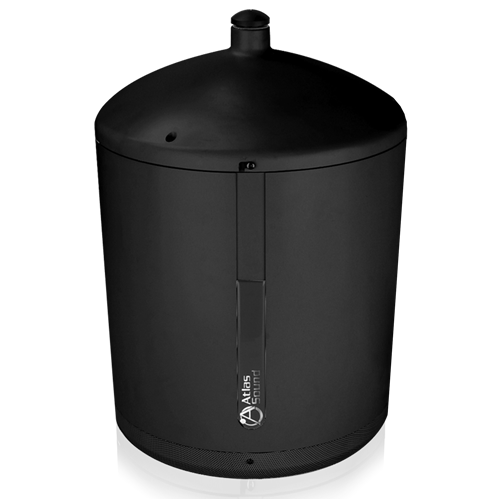

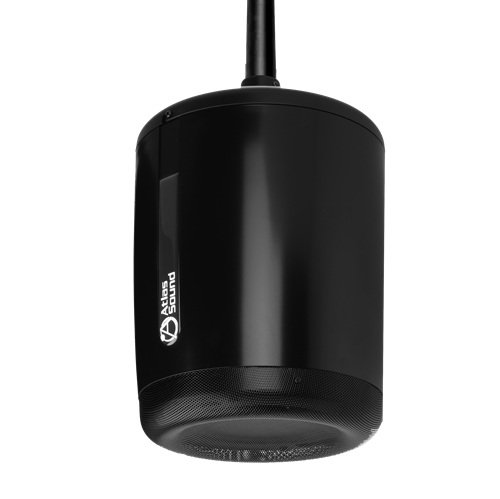

8" 2-way Pendant Mount Speaker with 60-Watt 70.7V Transformer - Black

PM8FA-B
Availability: In stock
Your price (USD): $300.99
  • IPX3
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
    DESCRIPTION

    The AtlasIED PM8FA features the familiar response and dispersion of AtlasIED’s model FA138 high performance 8” Strategy Series driver. This speaker is the same FA Series device used in AtlasIED’s successful model FAP82T ceiling speaker package. Mounted down-firing in an attractive enclosure, the PM8FA provides natural sounding, wide coverage for low height installations while retaining impressive full range frequency response for both music and paging applications.

    Attaching a PM8FA to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTECTM brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).




    FEATURES
    • 70.7V Taps @ 1.9, 3.8, 7.5, 15, 30 & 60 Watts Plus 8-ohm Direct Input via Concealed Terminal Block
    • 8" FA138 Driver Provides 100 Degree (50 Degree Off-Axis) Coverage in the 2kHz Octave Band
    • 3 Meters of 2mm Cable & Mounting Hardware Included
    • Compatible with Standard 3/4" Ceiling Fan Hardware
    • Outstanding Full Range Frequency Response of 55Hz - 20kHz

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 90dB Average
    Frequency Response 60Hz - 20kHz
    Impedance 1.9, 3.8, 7.5, 15, 30, 60 Watts & 8Ω

    SUPPORT FILES

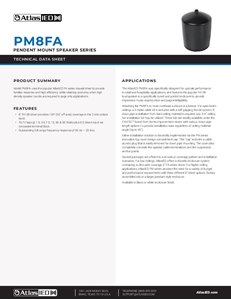

    Data Sheet
    ATS002843_PM8FA_Data3
    Installation Sheet
    ATS004369_PM_Series_Install_Sheet
    Revit Drawing
    Revit Drawing
    Revit Drawing
    PM8FA-B Revit Drawing
    CAD Drawing
    PM8 Series CAD File


    Speaker Placement Tool

    The AtlasIED Speaker Placement Tool is designed to make it easy to select the proper positioning of speakers in a given room. Choose your AtlasIED speaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    Loudspeaker:
    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
    Your browser does not support the HTML5 canvas tag.
    Click Here to Download Offline Excel Version
