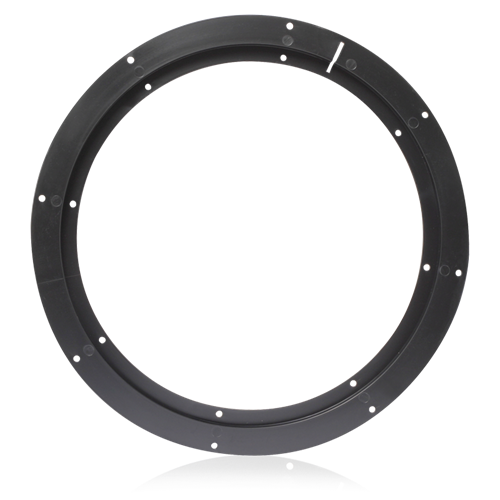

8 inch Plastic Mounting Ring

P77-8
Availability: In stock
Your price (USD): $6.99
  • TAA
    DESCRIPTION
    Plastic mounting ring is ideal for retrofit applications with hard-to-access ceilings.

    Model P77-8 may be conveniently installed from ground level by cutting a 12" (305mm) dia. hole in the ceiling, snapping ring at breakslot, and maneuvering it up through hole to rest above ceiling.

    Construction is polystyrene plastic. Four J-nuts included.

    FEATURES
    • Construction is Polystyrene Plastic, Four J-Nuts Included
    • Conveniently Installed from Ground Level
    • Plastic Mounting Ring Ideal for Retrofit Applications with Hard-to-Access Ceilings

    SPECIFICATIONS
    Depth 3/8" (0.9525 cm)
    Diameter 110 15/16" (30.32252 cm)
    Shipping Weight 0.35 lbs (0.16 kgs)
    Mounts Baffle 51-8, 60-8(W), 61-8W, 62-8, 63-8, 170-8, M222(W), P900

    SUPPORT FILES
    Data Sheet
    ATS004109 4%22 and 8%22 Mounting Rings Datasheet RevA
