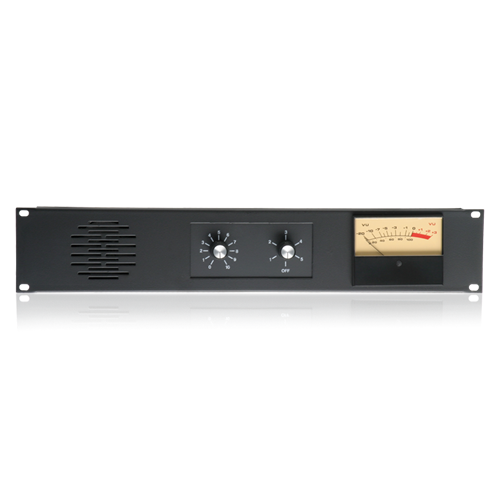

19 inch Monitor Panel 2RU 3 inch Speaker

MVX-193

Availability: In stock
Your Price:
$620.99
  • BAA
  • TAA
    DESCRIPTION

    The AtlasIED MVX-193 monitor panels features a VU meter and 3" diameter speaker equipped for connection to 70.7 or 25-volt lines. To enable monitoring of up to five program channels, unit include a 6-position, double pole switch with a positive "off" position and a volume control for adjusting the level of the monitor speaker. Each monitored circuit connects to two rear-mounted screw terminals. The VU meter is of moving coil design and include a type "A" meter scale with rear-mounted control for setting unit to 0 dB. Meter is covered by a protective thermoplastic case. Attractive front panel is 16-gauge CRS with a unique stamped grille design. Front-mounted volume control and channel selectors are furnished on a black plate with white nomenclature. Assemblies are factory wired and finished in textured black enamel 2RU height


    Features
    • Effective Sound and VU Meter Monitoring for Control Centers of Commercial and Professional Sound Systems
    • Integral 3" Diameter Loudspeaker for Monitoring 70.7 or 25-Volt Lines

    SPECIFICATIONS
    Rack Units 2
    Channels 5
    Height 3 1/2" (8.89 cm)
    Width 19" (48.26 cm)
    Depth 4" (10.16 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES
    MVX-193 MVX-193

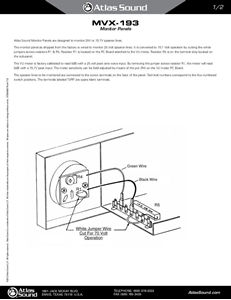

    MVX-193 Install Sheet (2 pages) MVX-193 Install Sheet (2 pages)

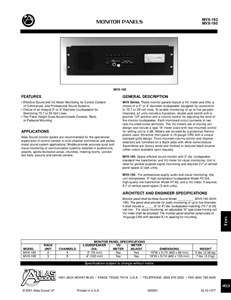

    Monitor Panels Datasheet (1 page) Monitor Panels Datasheet (1 page)
