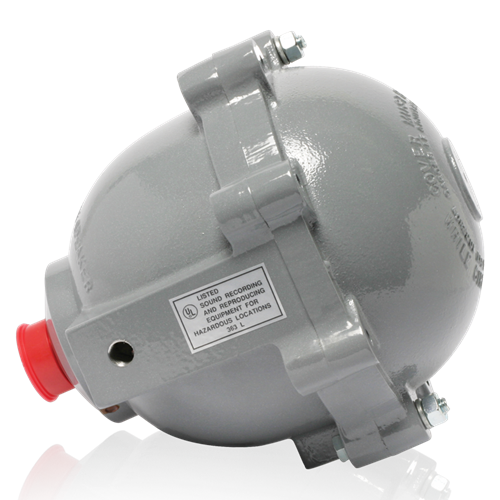

UL Listed 30-Watt, 8 Ohm Explosion-Proof Driver for Use in Hydrogen Environments

MLE-3
Availability: In stock
MSRP (USD): $491.99
  • Horn Sold Separately
  • UL Listed
  • 70V100VCAPABLE
  • IP56
    DESCRIPTION

    Model MLE-3 is an explosion-proof compression driver engineered for high-efficiency voice and electronic signal communication in hazardous areas. The driver is protected within a rugged die-cast aluminum housing equipped with a pipe seal with integral field wiring leads, and an adjustable mounting bracket.

    Optional projector horns are available in two styles to meet dispersion requirements. Model HLE_MLE-30 is a high-quality, polycarbonate projector that creates a 120 ° x 60 ° pattern for wide area coverage. Model HLE_MLE-32 is a spun aluminum bell providing a 95 ° circular distribution emphasis.

    **ONLY The HLE_MLE-30 and the HLE_MLE-32 Horns are UL Listed for use with the HLE or MLE Line of Explosion Proof Drivers **


    Features
    • 30 Watt, 8 Ohm High-Intelligibility Driver in Cast Aluminum Housing
    • Approved for Class 1/Groups B, C & D Environments
    • Efficiency of Reflex-Style Projectors with Wide Angle or Circular Sound Dispersion
    • Explosion-Proof Loudspeakers for Signal and Communications Systems
    • Listed by UL for Use in Hazardous/Combustible Environments (Noted Models)
    • UL Certified, Safety Listed to UL1203

    SPECIFICATIONS
    Frequency Response 300Hz - 14kHz
    Sensitivity 106dB W/HLE_MLE-30 Horn & 110dB W/HLE_MLE-32 Horn
    Power Tap 8 Ohm
    Power Rating 30 Watts Cont.
    Mounts Horn HLE_MLE-30, HLE_MLE-32 (See horn spec. for final product dimensions and dispersion)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    MLE Series Datasheet (3 pages) MLE Series Datasheet (3 pages)
    MLE Series Install Sheet (1 page) MLE Series Install Sheet (1 page)
    HLE/MLE-3(T) UL1203 Certificate of Compliance (1 page) HLE/MLE-3(T) UL1203 Certificate of Compliance (1 page)
