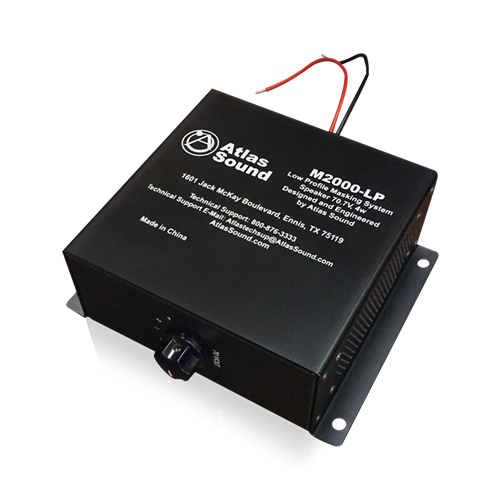

Dual 2" x 4" Sound Masking Loudspeaker System with 70V Transformer

M2000-LP
  • UL Listed
  • CUL
  • 70V100VCAPABLE

    The M2000-LP sound masking loudspeaker assembly is designed to accurately reproduce the required spectrum of masking signal into small plenum spaces. The innovative square enclosure ensures accurate sound masking frequency response. Specially designed 2" x 4" cone loudspeakers (2) are included in the package. A high efficiency 70.7V internal transformer is coupled to an external tap selector switch for easy system tuning.

    To meet most any local code requirement, the M2000-LP includes an innovative cover containing both knockouts and a strain relief. This system will allow the use of rigid or flexible conduit (if required) and easily accommodates "through" connections on the removable plate. UL 2043 listed for use in air handling spaces.

    FEATURES
    Pre-Assembled Unit Includes Two 2" x 4" Paper Cone Speakers
    Built in 70.7V Transformer with Taps Available from .25 - 4 Watts Adjustable via a Front Mounted Switch Includes an Off Setting
    Romex® Clamp Input with Two 18-Gauge Leads Color Coded in Red
    & Black
    UL Listed for Use in Air Handling Spaces (UL 2043)
    UL1480 Listed
    SPECIFICATIONS
    Height 2 5/8" (67mm)
    Width 7 1/2" (191mm)
    Depth 7" (178mm)
    Transformer Taps .25, .5, 1, 2, & 4 Watts, plus an Off Setting
    Loudspeaker Two 2" x 4" Paper Cone Speakers
    SUPPORT FILES

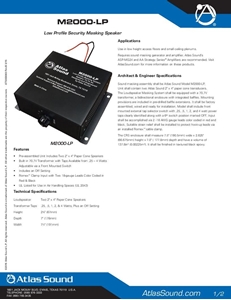

    Data Sheet
    M2000-LP Data Sheet (2 pages)

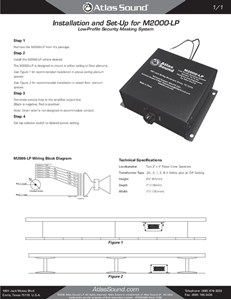

    Installation Sheet
    M2000-LP Installation Sheet (1 page)
    CAD Drawing
    M2000-LP CAD File
    White Paper
    Atlas Sound Masking Data Sheet (2 pages)
